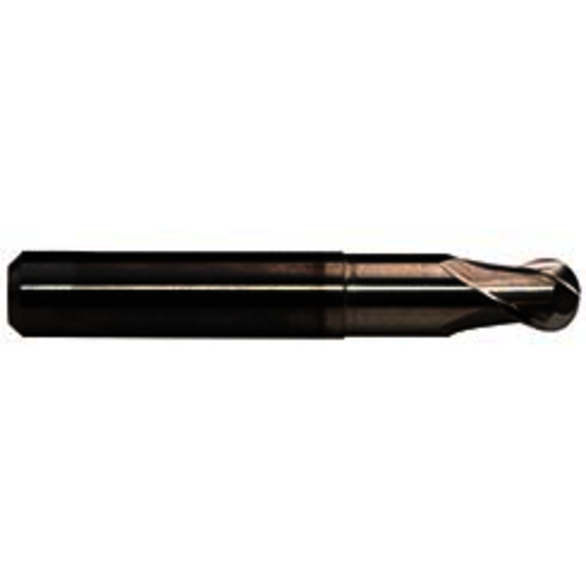

Emuge 1921R.01875 Ball End Mills 3/16in Milling Dia, 3/16in LOC, 2-1/4in OAL, 2 Flutes, Carbide
EMUGE 1921R.01875
$143.77
/ EA
Out of Stock
- Mill Diameter: 3/16 in
- Mill Diameter - Fractional: 3/16 in
- Number of Flutes: 2
- Length of Cut: 3/16 in
- Material: Carbide
- Overall Length: 2-1/4 in
- Shank Diameter: 1/4 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 0.25 in
- Finish/Coating: CRN Coated
- Helix Angle: 30 deg
- Cutter Diameter: 3/16 in
- Cutter Diameter - Fractional: 3/16 in
- Cutting Direction: Right Hand
- Length of Cut - Fractional: 3/16 in
- Overall Length - Fractional: 2-1/4 in
- Series: Alu-Cut 1921R
- Shank Diameter Metric: 0.25 in
- Shank Type: Cylindrical
- Flute Type: Spiral
- The Alu-Cut series was developed for process reliable volume machining of wrought aluminum alloys
- Highest metal removal rates for stable milling processes
- Patented chisel edge construction
- CRN coated options for high silicon aluminum alloys as well as copper alloys
- Short flute
- For high performance milling of aluminum and aluminum alloys
Standards/Approvals: ASME B94.19|DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Ball Nose End Mill | Stub Length | Series: Alu-Cut 1921R | 3/16 in Diameter Cutter | 2-1/4 in Overall Length | 3/16 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 1/4 in Shank Diameter | Right Hand Cutting Direction | 30 deg Helix Angle | Cylindrical Shank | Carbide | CRN Coated
