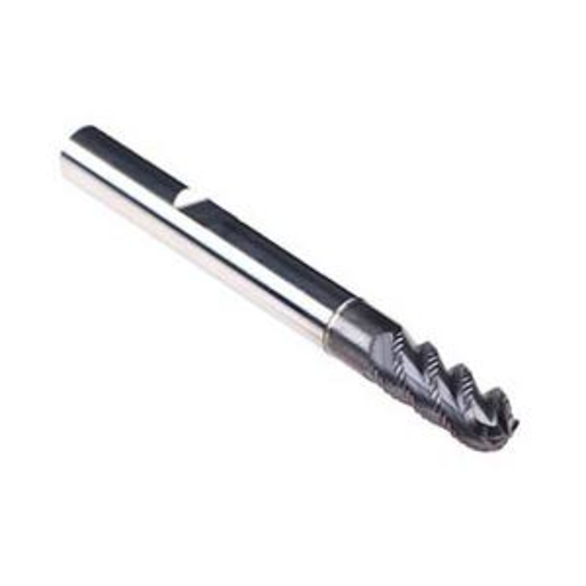

Emuge 2667A.005 Ball End Mills 5mm Milling Dia, 13mm LOC, 57mm OAL, 3 Flutes, Carbide
EMUGE 2667A.005
$188.19
/ EA
Out of Stock
- Mill Diameter: 5 mm
- Number of Flutes: 3
- Length of Cut: 13 mm
- Material: Carbide
- Overall Length: 57 mm
- Shank Diameter: 6 mm
- Shank Diameter - Metric: 6 mm
- Finish/Coating: TiAlN Coated
- Helix Angle: 45 deg
- Cutter Diameter: 5 mm
- Cutter Diameter - Metric: 5 mm
- Cutting Direction: Right Hand
- Length of Cut - Metric: 13 mm
- Overall Length - Metric: 57 mm
- Series: Multi-Cut 2667A
- Shank Type: Weldon Flat
- Flute Type: Spiral
- Multi-Cut carbide end mills were developed for high performance roughing operations and maximum metal removal rates
- Process reliable roughing
- Vibration dampening variable flute spacing
- NR fine roughing flute profile helps reduce vibrations and cutting force for optimum performance
- PVD applied TiAlN coated for wear and heat resistance
Standards/Approvals: DIN 6535 HA|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For roughing applications
Emuge Ball Nose End Mill | Series: Multi-Cut 2667A | 5 mm Diameter Cutter | 57 mm Overall Length | 13 mm Maximum Depth of Cut | 3 Flutes | Spiral Flute | 6 mm Shank Diameter | Right Hand Cutting Direction | 45 deg Helix Angle | Weld-On Flat Shank | Carbide | TiAlN Coated
