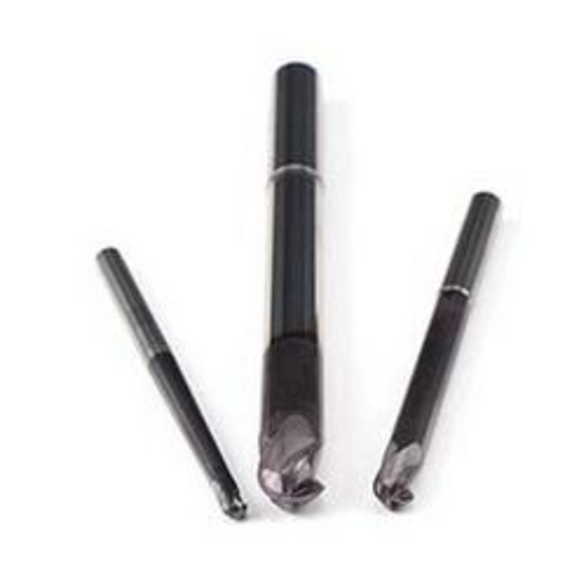

Emuge 2943A.03125 Ball End Mills 5/16in Milling Dia, 9/32in LOC, 4in OAL, 4 Flutes, Carbide
EMUGE 2943A.03125
$173.94
/ EA
Out of Stock
- Mill Diameter: 5/16 in
- Mill Diameter - Fractional: 5/16 in
- Number of Flutes: 4
- Length of Cut: 9/32 in
- Material: Carbide
- Overall Length: 4 in
- Shank Diameter: 5/16 in
- Shank Diameter - Fractional: 5/16 in
- Shank Diameter - Metric: 0.3125 in
- Finish/Coating: TiAlN Coated
- Helix Angle: 30 deg
- Cutter Diameter: 5/16 in
- Cutter Diameter - Fractional: 5/16 in
- Cutting Direction: Right Hand
- Length of Cut - Fractional: 9/32 in
- Series: Hard-Cut 2943A
- Shank Diameter Metric: 0.3125 in
- Shank Type: Cylindrical
- Flute Type: Spiral
The Hard-Cut ball nose series of carbide end mills is specifically developed for machining hardened materials well suited for the die and mold industry and are manufactured with extremely tight tolerances.
- Patented chisel edge contour
- Designed for milling hardened materials up to 44-66 Rc
- Short or extra short flute with 30 deg helix angle options
- Straight flute options with 6 and 8 flutes for fine finishes
- TiAlN coated for heat and wear resistance
Standards/Approvals: DIN 6535 HA|ASME B94.19|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Ball Nose End Mill | Long Length | Series: Hard-Cut 2943A | 5/16 in Diameter Cutter | 4 in Overall Length | 9/32 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 5/16 in Shank Diameter | Right Hand Cutting Direction | 30 deg Helix Angle | Cylindrical Shank | Carbide | TiAlN Coated
