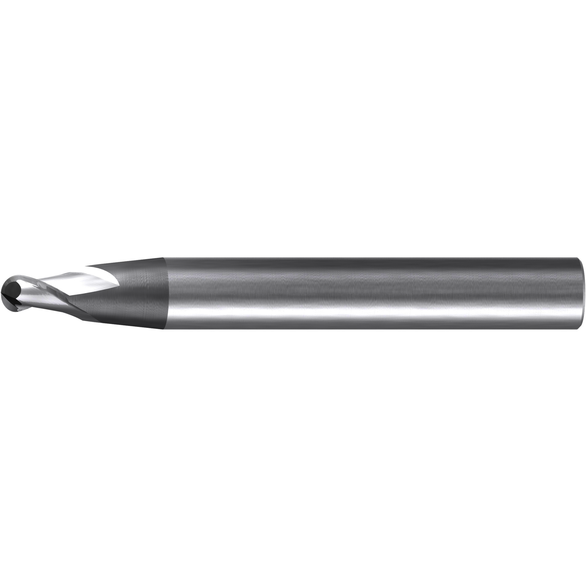

Emuge 3443.08030A Ball End Mills 3mm Milling Dia, 7mm LOC, 63mm OAL, 2 Flutes, Carbide
EMUGE 3443.08030A
$259.11
/ EA
Out of Stock
- Mill Diameter: 3 mm
- Number of Flutes: 2
- Length of Cut: 7 mm
- Material: Carbide
- Overall Length: 63 mm
- Shank Diameter: 12 mm
- Shank Diameter - Metric: 12 mm
- Finish/Coating: Polished
- Helix Angle: 30 deg
- Cutter Diameter: 3 mm
- Cutter Diameter - Metric: 3 mm
- Cutting Direction: Right Hand
- Flute Type: 8 deg Taper/Spiral
- Length of Cut - Metric: 7 mm
- Overall Length - Metric: 63 mm
- Series: Turbine Program 3443
- Shank Type: Cylindrical
- Turbine tools from Emuge are tailored specifically for the requirements of materials and component designs in the aircraft and turbine industry
- In addition, these tools can be used in the die and mold industry as well
- 3 deg taper flute construction
- Sub-micro grain carbide substrate
- Polished flutes promotes chip evacuation in aluminum alloys
Standards/Approvals: DIN 6535 HA|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Ball Nose End Mill | Tapered | Series: Turbine Program 3443 | 3 mm Diameter Cutter | 63 mm Overall Length | 7 mm Maximum Depth of Cut | 2 Flutes | 8 deg Taper/Spiral Flute | 12 mm Shank Diameter | Right Hand Cutting Direction | 30 deg Helix Angle | Cylindrical Shank | Carbide | Polished
