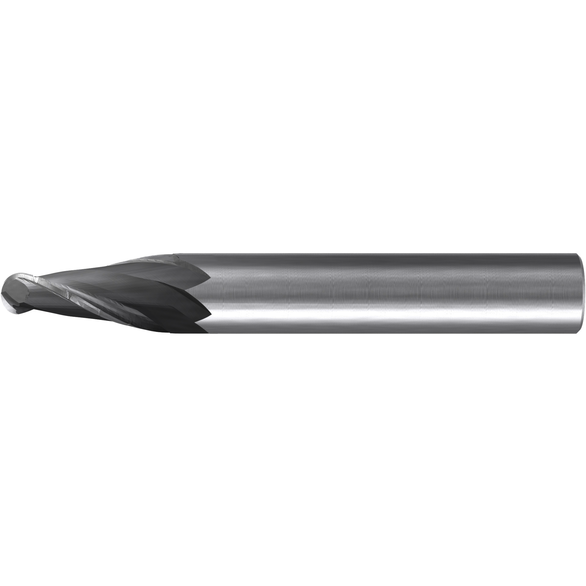

Emuge 3446.03020B Ball End Mills 2mm Milling Dia, 31mm LOC, 80mm OAL, 2 Flutes, Carbide
EMUGE 3446.03020B
$347.27
/ EA
Out of Stock
- Mill Diameter: 2 mm
- Number of Flutes: 2
- Length of Cut: 31 mm
- Material: Carbide
- Overall Length: 80 mm
- Shank Diameter: 8 mm
- Shank Diameter - Metric: 8 mm
- Finish/Coating: Bright
- Helix Angle: 30 deg
- Cutter Diameter: 2 mm
- Cutter Diameter - Metric: 2 mm
- Cutting Direction: Right Hand
- Flute Type: 3 deg Taper/Spiral
- Length of Cut - Metric: 31 mm
- Overall Length - Metric: 80 mm
- Series: Turbine Program 3446
- Shank Type: Cylindrical
- Turbine tools from Emuge are tailored specifically for the requirements of materials and component designs in the aircraft and turbine industry
- In addition, these tools can be used in the die and mold industry as well
- 8 deg taper flute construction
- Sub-micro grain carbide substrate
Standards/Approvals: DIN 6535 HA|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Ball Nose End Mill | Tapered | Series: Turbine Program 3446 | 2 mm Diameter Cutter | 80 mm Overall Length | 31 mm Maximum Depth of Cut | 2 Flutes | 3 deg Taper/Spiral Flute | 8 mm Shank Diameter | Right Hand Cutting Direction | 30 deg Helix Angle | Cylindrical Shank | Carbide | Bright
