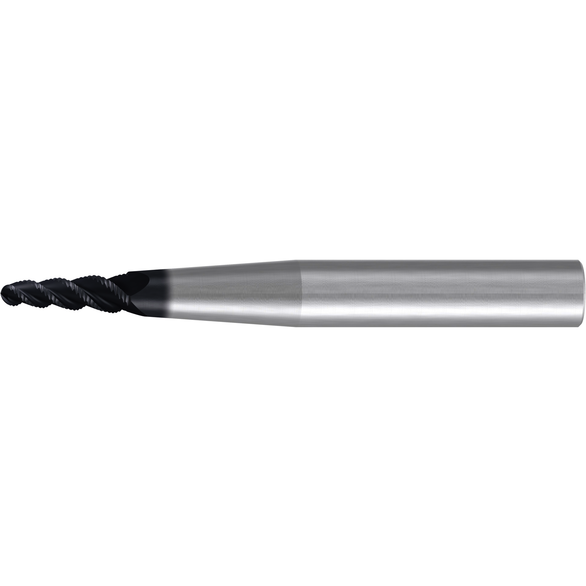

Emuge 3546L.04020A Ball End Mills 2mm Milling Dia, 30mm LOC, 120mm OAL, 3 Flutes, Carbide
EMUGE 3546L.04020A
$296.74
/ EA
Out of Stock
- Mill Diameter: 2 mm
- Number of Flutes: 3
- Length of Cut: 30 mm
- Material: Carbide
- Overall Length: 120 mm
- Shank Diameter: 12 mm
- Shank Diameter - Metric: 12 mm
- Finish/Coating: AlCr Coated
- Helix Angle: 45 deg
- Cutter Diameter: 2 mm
- Cutter Diameter - Metric: 2 mm
- Cutting Direction: Right Hand
- Flute Type: 4 deg Taper/Spiral
- Length of Cut - Metric: 30 mm
- Overall Length - Metric: 120 mm
- Series: Turbine Program 3546L
- Shank Type: Cylindrical
- Turbine tools from Emuge are tailored specifically for the requirements of materials and component designs in the aircraft and turbine industry
- In addition, these tools can be used in the die and mold industry as well
- 4 deg taper flute construction
- Sub-micro grain carbide substrate
- AlCr coated options for additional tool life in titanium alloys, high temp alloys, stainless steel and aluminum alloys
Standards/Approvals: PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Ball Nose End Mill | Tapered | Series: Turbine Program 3546L | 2 mm Diameter Cutter | 120 mm Overall Length | 30 mm Maximum Depth of Cut | 3 Flutes | 4 deg Taper/Spiral Flute | 12 mm Shank Diameter | Right Hand Cutting Direction | 45 deg Helix Angle | Cylindrical Shank | Carbide | AlCr Coated
