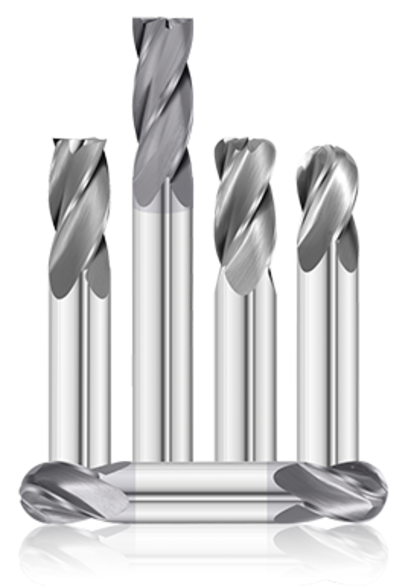

Fullerton Tool 30728 Ball End Mill 0.2031In Milling Dia, 0.625In LOC, 2.5In OAL, 4 Flutes, Carbide
FULTOO 30728
$34.64
/ EA
Out of Stock
- Mill Diameter: 5.16 mm
- Mill Diameter - Decimal: 0.2031 in
- Mill Diameter - Fractional: 13/64 in
- Mill Diameter - Metric: 5.16 mm
- Number of Flutes: 4
- Length of Cut: 0.625 in
- Material: Solid Dura-Carb
- Overall Length: 2.5 in
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Finish/Coating: TiAlN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Coolant Through: No
- Cutting Direction: Right Hand
- Diameter - Decimal: 0.20312 in
- Diameter - Fractional: 13/64 in
- Diameter - Metric: 5.159 mm
- End Type: Ball Nose
- Length of Cut - Fractional: 5/8 in
- Length of Cut - Metric: 15.88 mm
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Series: 3200B
- Type: Center Cutting
- Finish: TiAlN
- Flute Direction: Right Hand
EM 13/64X5/8X1/4X2-1/2 4F BN CARBIDE
