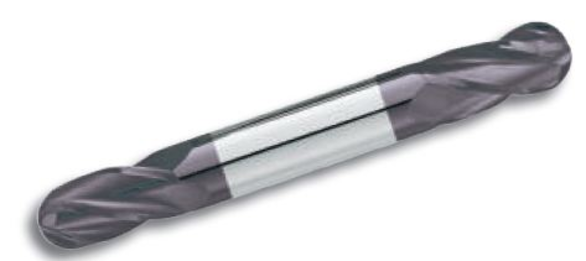

GARR 08637 Ball End Center Cutting Stub Length Double End End Mill, 9 mm Dia Cutter, 14 mm Length of Cut, 4 Flutes, 9 mm Dia Shank, 75 mm OAL, TiAlN Coated
GARR 08637
$49.75
/ EA
Out of Stock
- Mill Diameter: 9 mm
- Number of Flutes: 4
- Length of Cut: 14 mm
- Material: Solid Carbide
- Overall Length: 75 mm
- Shank Diameter: 9 mm
- Shank Diameter - Decimal: 0.35433 in
- Shank Diameter - Metric: 9 mm
- Single or Double End: Double End
- Helix Angle: 30 deg
- Cutting Diameter: 9 mm
- Cutting Diameter - Metric: 9 mm
- Diameter: 0.3543 in
- Diameter - Decimal: 0.35433 in
- Diameter - Metric: 9 mm
- Flat: N
- Length of Cut - Metric: 14 mm
- Length Type: Stub Length
- Overall Length - Metric: 75 mm
- Series: 250
- Tool Type: EM
- Weight: 0.15 kg
- End Type: Ball Nose
- Type: Center Cutting
- Finish: TiAlN
- Shorter flute length for rigidity
- Dry or semi-dry machining
- Up to 40% faster than uncoated
- Ball radius tolerance +.000-.001" (+.000-.025mm)
