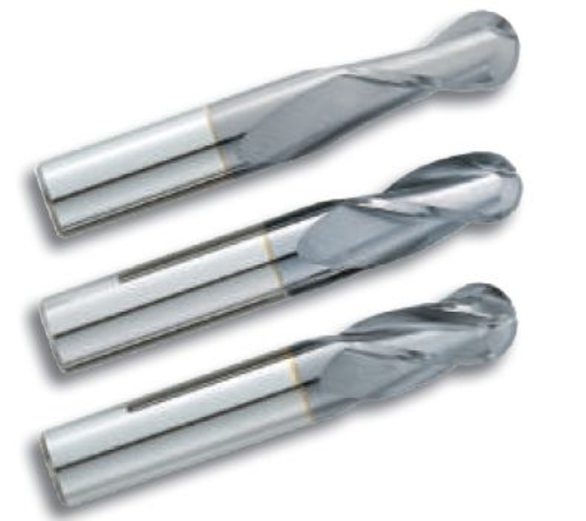

GARR 17324 323MC Ball End Center Cutting Standard Length End Mill, 9/16 in Dia Cutter, 1-1/4 in Length of Cut, 3 Flutes, 9/16 in Dia Shank, 3-1/2 in OAL, TiCN Coated
GARR 17324
$82.43
/ EA
Out of Stock
- Mill Diameter: 0.5625 in
- Number of Flutes: 3
- Length of Cut: 1.25 in
- Material: Solid Carbide
- Overall Length: 3.5 in
- Shank Diameter: 0.5625 in
- Shank Diameter - Decimal: 0.5625 in
- Shank Diameter - Fractional: 9/16 in
- Single or Double End: Singel End
- Helix Angle: 30 deg
- Cutting Diameter: 9/16 in
- Cutting Diameter - Fractional: 9/16 in
- Diameter: 9/16 in
- End Type: Ball Nose
- Flat: N
- Length of Cut - Fractional: 1-1/4 in
- Overall Length - Fractional: 3-1/2 in
- Series: 55
- Tool Type: EM
- Type: Center Cutting
- Weight: 0.39 kg
- Diameter - Fractional: 9/16 in
- Diameter - Decimal: 0.5625 in
- Diameter - Metric: 14.28 mm
- Finish: TiCN
- 30 degree helix - rhs/rhc
- Improved lubricity and abrasion resistance
- Up to 25% faster than uncoated
- Ball radius tolerance +.000"-.001" (+.000-.025mm)
