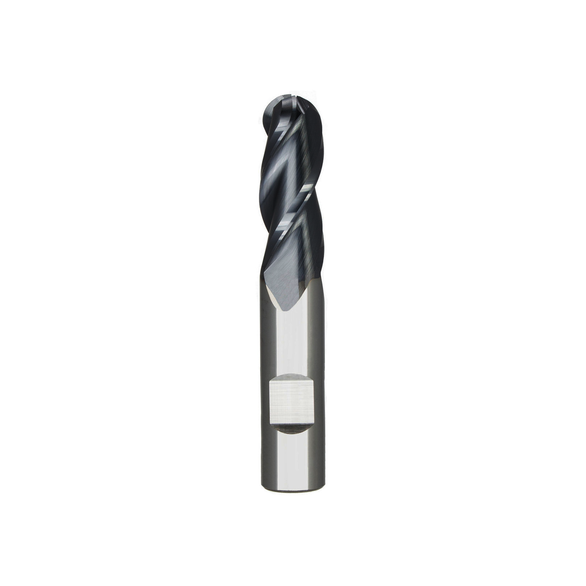

Niagara Cutter 17003794 Elite SB335 Ball End Center Cutting High Performance Single End Stub Length End Mill, 11/32 in Dia Cutter, 1/2 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2 in OAL, AlTiN Coated
NIACUT 17003794
$67.60
/ EA
Out of Stock
- Mill Diameter: 11/32 in
- Number of Flutes: 3
- Length of Cut: 1/2 in
- Material: Solid Carbide
- Overall Length: 2 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Helix Angle: 35 deg
- Cutter Diameter: 11/32 in
- Cutter Diameter - Decimal: 0.34375 in
- Cutter Diameter - Fractional: 11/32 in
- Cutter Diameter - Metric: 8.731 mm
- Cutting Direction: Right Hand
- Finish: AlTiN
- Length of Cut - Fractional: 1/2 in
- Shank Type: Weldon Flat
- Length Type: Stub Length
- Series: Elite SB335
- Flute Type: Spiral
- Type: Center Cutting;High Performance
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 35 deg axial rake
- 10 deg radial rake
- Weldon flat standard on shank sizes 3/8 in and larger
- F - Step tool shape
- Ideal for slotting in steel, stainless steel, titanium and high temperature alloys
Slotting Applications
Niagara Cutter End Mill | Ball End Center Cutting High Performance Single End Stub Length | Series: Elite SB335 | 11/32 in Cutter Dia | 2 in Overall Length | 3/8 in | 1/2 in Maximum Depth of Cut | 3 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 35 deg Helix Angle | Weldon Flat Shank | ANSI Code: SB335-0.344-F1-B.3-Z3 | ISO Code: SB335.344F1B.3Z3 | Solid Carbide | AlTiN Coated
