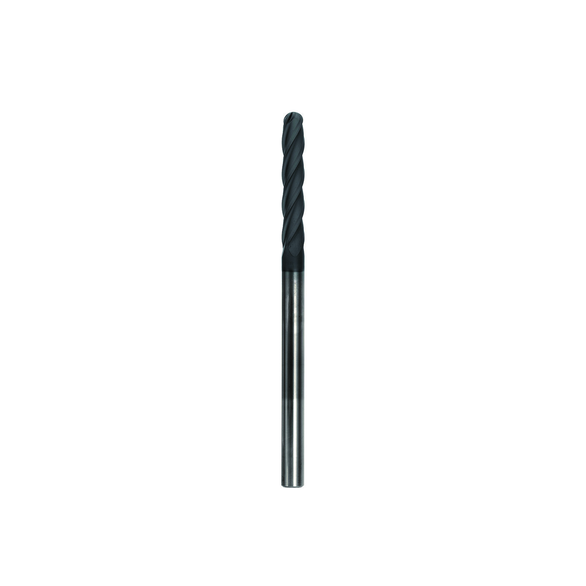

Niagara Cutter 17004611 DIALB430 Ball End Center Cutting Extended Reach Single End End Mill, 3/8 in Dia Cutter, 1-3/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 6 in OAL, DiamondPlus™ CVD Coated
NIACUT 17004611
$409.50
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Number of Flutes: 4
- Length of Cut: 1-3/8 in
- Material: Solid Carbide
- Overall Length: 6 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Finish/Coating: DiamondPlus™ CVD Coated
- Helix Angle: 30 deg
- Cutter Diameter: 3/8 in
- Cutter Diameter - Decimal: 0.375 in
- Cutter Diameter - Fractional: 3/8 in
- Cutting Direction: Right Hand
- Length of Cut - Fractional: 1-3/8 in
- Series: DIALB430
- Shank Type: Cylindrical
- Type: Center Cutting
- Length Type: Extended Reach Length
- Flute Type: Spiral
- Cutter Diameter - Metric: 9.525 mm
- Finish: DiamondPlus CVD
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Diamond is one of the hardest abrasive coatings, it is commonly used in grinding and polishing ceramic, stone and aluminum alloy
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
- Designed for carbon fiber, composite applications, graphite and green ceramics
Niagara Cutter End Mill | Ball End Center Cutting Extended Reach Single End | Series: DIALB430 | 3/8 in Cutter Dia | 6 in Overall Length | 3/8 in | 1-3/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: DIALB430-0.375-D6-B.0-Z4 | ISO Code: DIALB430.375D6B.0Z4 | Solid Carbide | DiamondPlus CVD Coated
