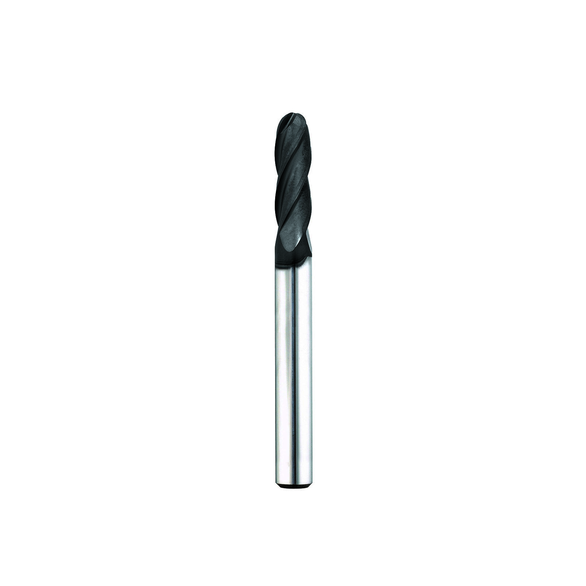

Niagara Cutter 17004998 DIAB430 Ball End Center Cutting Long Length Single End End Mill, 3/32 in Dia Cutter, 3/8 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, DiamondPlus™ CVD Coated
NIACUT 17004998
$147.88
/ EA
Out of Stock
- Mill Diameter: 3/32 in
- Number of Flutes: 4
- Length of Cut: 3/8 in
- Material: Solid Carbide
- Overall Length: 1-1/2 in
- Shank Diameter: 1/8 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Finish/Coating: DiamondPlus™ CVD Coated
- Helix Angle: 30 deg
- Cutter Diameter: 3/32 in
- Cutter Diameter - Decimal: 0.09375 in
- Cutter Diameter - Fractional: 3/32 in
- Cutter Diameter - Metric: 2.381 mm
- Cutting Direction: Right Hand
- Finish: DiamondPlus CVD
- Length of Cut - Fractional: 3/8 in
- Length Type: Long Length
- Overall Length - Fractional: 1-1/2 in
- Series: DIAB430
- Type: Center Cutting
- Flute Type: Spiral
- Shank Type: Cylindrical
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Diamond is one of the hardest abrasive coatings, it is commonly used in grinding and polishing ceramic, stone and aluminum alloy
- 90 deg cutting edge
- 1.102 in L minimum clamping
- 30 deg axial rake
- 7 deg radial rake
- F - Step tool shape
- Designed for carbon fiber, composite applications, graphite and green ceramics
Niagara Cutter End Mill | Ball End Center Cutting Long Length Single End | Series: DIAB430 | 3/32 in Cutter Dia | 1-1/2 in Overall Length | 1/8 in | 3/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: DIAB430-0.094-F4-B.0-Z4 | ISO Code: DIAB430.094F4B.0Z4 | Solid Carbide | DiamondPlus CVD Coated
