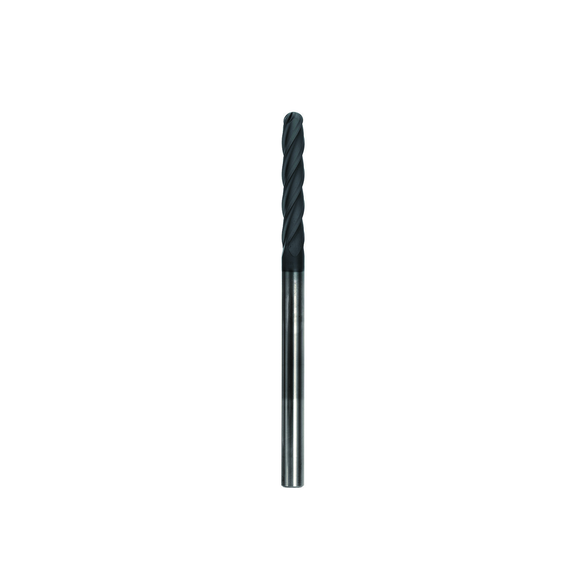

Niagara Cutter 17005019 DIALB430 Ball End Center Cutting Extended Reach Single End End Mill, 1/2 in Dia Cutter, 2 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 4 in OAL, DiamondPlus™ CVD Coated
NIACUT 17005019
$428.42
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Number of Flutes: 4
- Length of Cut: 2 in
- Material: Solid Carbide
- Overall Length: 4 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Finish/Coating: DiamondPlus™ CVD Coated
- Helix Angle: 30 deg
- Cutter Diameter: 1/2 in
- Cutter Diameter - Decimal: 0.5 in
- Cutter Diameter - Metric: 12.7 mm
- Cutting Direction: Right Hand
- Finish: DiamondPlus CVD
- Flute Type: Spiral
- Series: DIALB430
- Length Type: Extended Reach Length
- Cutter Diameter - Fractional: 1/2 in
- Shank Type: Cylindrical
- Type: Center Cutting
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Diamond is one of the hardest abrasive coatings, it is commonly used in grinding and polishing ceramic, stone and aluminum alloy
- 90 deg cutting edge
- 1.781 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
- Designed for carbon fiber, composite applications, graphite and green ceramics
Niagara Cutter End Mill | Ball End Center Cutting Extended Reach Single End | Series: DIALB430 | 1/2 in Cutter Dia | 4 in Overall Length | 1/2 in | 2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: DIALB430-0.500-D5-B.0-Z4 | ISO Code: DIALB430.500D5B.0Z4 | Solid Carbide | DiamondPlus CVD Coated
