OSG 44301311 5/16 in Mill Dia, 5/8 in LOC, 4 in OAL, 4 Flutes, Micrograin Carbide, WXS® Coated, Ball End Mill

OSG 44301311
$155.26 / EA
Out of Stock

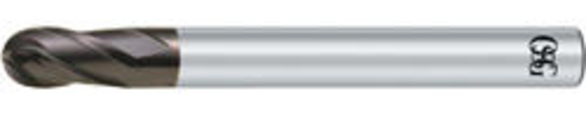

Product Image
  • Mill Diameter: 0.3125 in
  • Mill Diameter - Decimal: 0.3125 in
  • Mill Diameter - Fractional: 5/16 in
  • Number of Flutes: 2
  • Length of Cut: 0.625 in
  • Material: Carbide
  • Overall Length: 4 in
  • Shank Diameter: 0.3125 in
  • Shank Diameter - Decimal: 0.3125 in
  • Shank Diameter - Fractional: 5/16 in
  • Shank Diameter - Metric: 7.937 mm
  • Finish/Coating: WXS
  • Single or Double End: Single End
  • Helix Angle: 30 deg
  • Centercutting: Center Cutting
  • Coolant Through: No
  • Cutter Diameter: 5/16 in
  • Cutter Diameter - Fractional: 5/16 in
  • Cutting Direction: Right Hand
  • Diameter: 5/16 in
  • Diameter - Decimal: 0.3125 in
  • Diameter - Fractional: 5/16 in
  • End Type: Ball Nose
  • Finish: WXS® Coated
  • Flute Direction: Right Hand
  • Length of Cut - Decimal: 0.625 in
  • Length of Cut - Fractional: 5/8 in
  • Overall Length - Decimal: 4 in
  • Series: 4430
  • Shank Type: Shrink Fit
  • Flute Type: Spiral
  • Type: Center Cutting
  • Diameter - Metric: 7.937 mm

Exocarb®-Wxs End Mills Are The New Industry Standard For Hard Milling. Everything About Wxs Is Designed For Rigidity And Performance In Hardened Steel 50 Hrc And Greater. Substrates, Geometry, And Proprietary Wxs Coating Are All Specifically Tailored For Hardened Steels Like D2, A2, S7, H13 And Cpm.

  • Ultra-Fine Micrograin Carbide The Hardest Most Wear Resistant Carbide Possible For Incredible Wear Resistance
  • High Precision Geometry - All Corner Radius & Ball Mills Have +/-5Um Radius Tolerance High Accuracy All But Eliminates Need For Benching And Rework For Mold Makers
  • High Strength Core Diameter Tools Utilize Thicker Core Diameters For The Ultimate In Strength And Rigidity
  • Wxs Coating - +1300 Celsius Oxidation Temp. & +3500Hv In Hardness Higher Coating Oxidation Temp & Hardness Dramatically Improve Wear Resistance.

Application:Ideally Suited For Hardened Steel > 50 Hrc.Also Works In: Cast Iron, Carbon Steel, Alloy Steel, Die Steel, Hardened Steel 35-50 Hrc.Use In Combination With High Speed Machining Techniques To Optimize Performance.

Osg 44301311 Mill Diameter 5/16 In | Number Of Flutes 4 | Length Of Cut 5/8 In | Carbide | 4.0000 In | Ball End Mill
