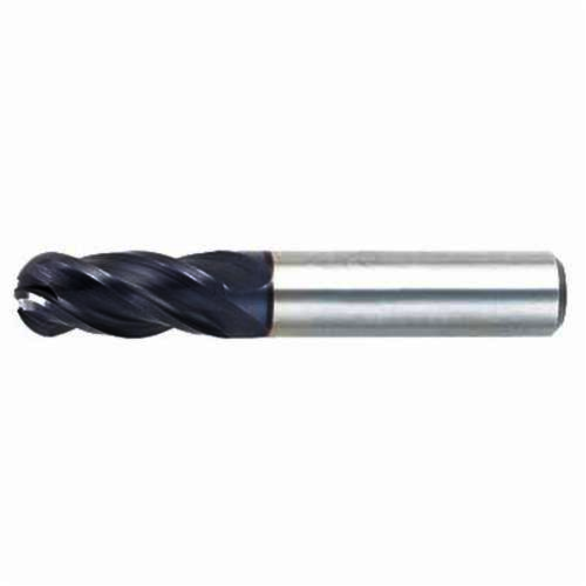

OSG HP441-4375-BN 7/16 in Mill Dia, 1 in LOC, 2-3/4 in OAL, 4 Flutes, Carbide, TiAlN Coated, Ball End Mill
OSG HP441-4375-BN
$110.34
/ EA
Out of Stock
- Mill Diameter: 0.4375 in
- Mill Diameter - Decimal: 0.4375 in
- Mill Diameter - Fractional: 7/16 in
- Mill Diameter - Metric: 11.1125 mm
- Number of Flutes: 4
- Length of Cut: 1 in
- Material: Carbide
- Overall Length: 2.75 in
- Shank Diameter: 0.4375 in
- Shank Diameter - Decimal: 0.4375 in
- Shank Diameter - Fractional: 7/16 in
- Shank Diameter - Metric: 11.1125 mm
- Finish/Coating: TiAlN
- Single or Double End: Single End
- Helix Angle: 35 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 7/16 in
- Cutter Diameter - Fractional: 7/16 in
- Cutting Direction: Right Hand
- Finish: TiAlN Coated
- Flute Type: Spiral
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Overall Length - Decimal: 2.75 in
- Overall Length - Fractional: 2-3/4 in
- Overall Length - Metric: 69.85 mm
- Series: HP441
- Shank Type: Round
- Flute Direction: Right Hand
For ferrous and non-ferrous materials
HY-PRO CARB End Mill | Ball End Center Cutting Regular Length | Series: HP441 | 7/16 in Cutter Dia | 2-3/4 in Overall Length | 1 in Maximum Depth of Cut | 4 Flutes | 7/16 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Round Shank | Carbide | TiAlN Coated
