Walter Tools

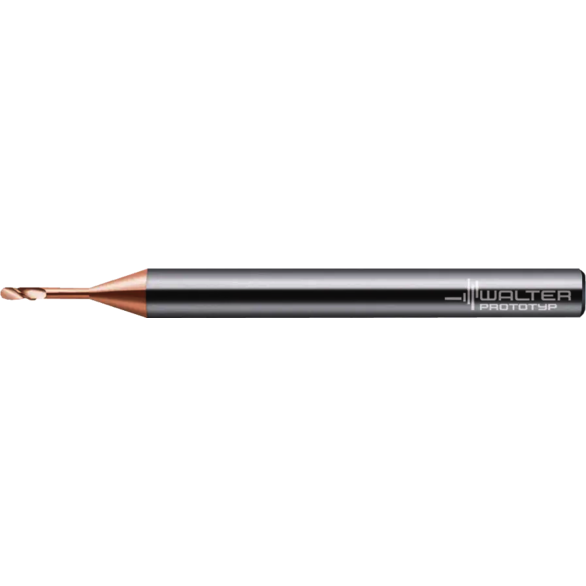

MILLING CUTTERS MC480-03.0A2ME-WB10TG
PROTYP 7255072
$104.06
/ EA
Out of Stock
- Mill Diameter: 3 mm
- Mill Diameter - Decimal: 0.1181 in
- Mill Diameter - Metric: 3 mm
- Number of Flutes: 2
- Length of Cut: 2.4 mm
- Material: Carbide
- Overall Length: 50 mm
- Shank Diameter: 4 mm
- Shank Diameter - Decimal: 0.1575 in
- Shank Diameter - Metric: 4 mm
- Finish/Coating: TiAlSiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coating: TiAlSiN
- Coolant Through: No
- Corner Radius: 1.5 mm
- Corner Radius - Metric: 1.5 mm
- Cutting Direction: Right Hand
- Cutting Edge Diameter - Metric: 3 mm
- Cutting Edge Length: 2.4 mm
- Cutting Edge Length - Metric: 2.4 mm
- Extended Reach: Yes
- Functional Length: 22 mm
- Functional Length - Metric: 22 mm
- Grade: WB10TG
- Length of Cut - Decimal: 0.094 in
- Length of Cut - Metric: 2.4 mm
- Maximum Cutting Depth: 2.4 mm
- Maximum Cutting Depth - Metric: 2.4 mm
- Number of Teeth: 2
- Overall Length - Metric: 50 mm
- Shank Length: 28 mm
- Shank Length - Metric: 28 mm
- Flute Direction: Right Hand
MILLING CUTTERS MC480-03.0A2ME-WB10TG
