Walter Tools

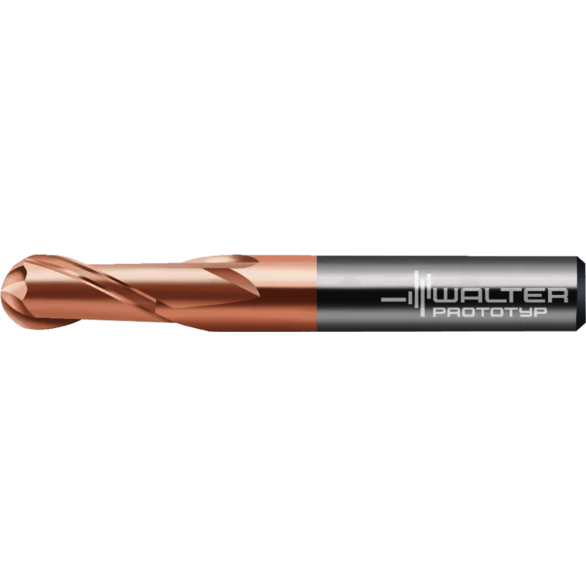

MILLING CUTTERS MC482-08.0A2B-WB10TG
PROTYP 7255198
$159.70
/ EA
Out of Stock
- Mill Diameter: 8 mm
- Mill Diameter - Decimal: 0.315 in
- Mill Diameter - Metric: 8 mm
- Number of Flutes: 2
- Length of Cut: 6.4 mm
- Material: Carbide
- Overall Length: 63 mm
- Shank Diameter: 8 mm
- Shank Diameter - Decimal: 0.315 in
- Shank Diameter - Metric: 8 mm
- Finish/Coating: TiAlSiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coating: TiAlSiN
- Coolant Through: No
- Corner Radius: 4 mm
- Corner Radius - Metric: 4 mm
- Cutting Direction: Right Hand
- Cutting Edge Diameter - Metric: 8 mm
- Cutting Edge Length: 6.4 mm
- Cutting Edge Length - Metric: 6.4 mm
- Extended Reach: Yes
- Flute Direction: Right Hand
- Functional Length: 27 mm
- Functional Length - Metric: 27 mm
- Grade: WB10TG
- Length of Cut - Decimal: 0.252 in
- Length of Cut - Metric: 6.4 mm
- Maximum Cutting Depth: 6.4 mm
- Maximum Cutting Depth - Metric: 6.4 mm
- Number of Teeth: 2
- Overall Length - Metric: 63 mm
- Shank Length: 36 mm
- Shank Length - Metric: 36 mm
MILLING CUTTERS MC482-08.0A2B-WB10TG
