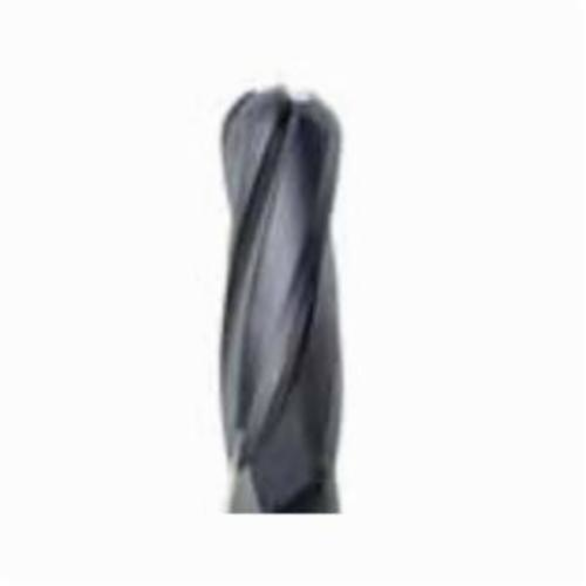

JABRO® Composites 02719955 JC850 Ball End Center Cutting Single End End Mill, 10 mm Dia Cutter, 30 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 85 mm OAL, Dura/Diamond Coated

The Jabro™ range of milling tools, with CVD diamond coating to reduce wear, is designed for burrless (top and bottom) machining, side-milling and 3D-copy milling, contouring, and slotting of layered carbon-fiber and glass-fiber composites as well as high-performance engineering plastics such as PEEK, and honeycomb materials.

• JABRO®-Composites - Composite machining technology
• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Dura coating is used in wide range of applications, it is very wear resistant and provides a longer tool life as compared to TiCN or TiAlN
• 90 deg cutting edge
• 0.196 in corner radius
• 1.574 in L minimum clamping
• 20 deg axial rake
• 6 deg radial rake
• D - Cylindrical tool shape
• 0 deg corner chamfer

Radial Ramping Applications

JABRO JABRO Composites End Mill | Ball End Center Cutting Single End | Series: JC850 | 10 mm Cutter Dia | 85 mm Overall Length | 10 mm | 30 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 10 mm Shank Dia | Right Hand Cutting | 20 deg Helix Angle | Cylindrical Shank | ANSI Code: 850100Z4.0-DURA | ISO Code: 850100Z4.0-DURA | Solid Carbide | Dura/Diamond Coated
