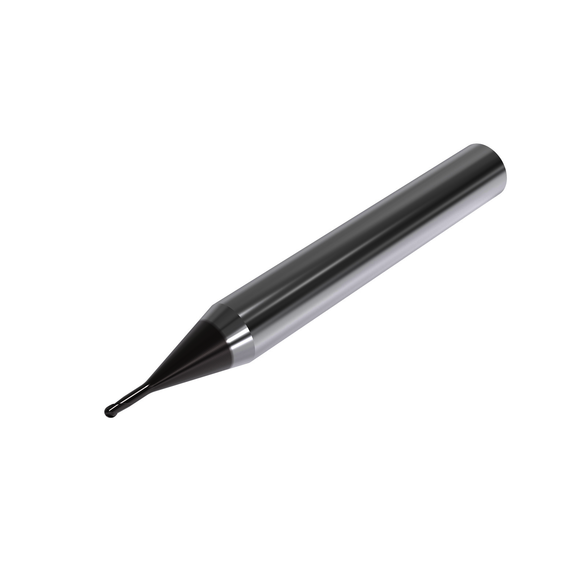

Seco 03171266 JMB562 Solid Carbide End Mills, 0.059 in Dia Cutter, 0.06 in Length of Cut, (2) Flutes, 0.234 in Dia Shank, 1.95 in OAL, SIRON-A
SECO 03171266
$125.28
/ EA
Out of Stock
- Mill Diameter: 1.5 mm
- Mill Diameter - Decimal: 0.059 in
- Mill Diameter - Metric: 1.5 mm
- Number of Flutes: 2
- Length of Cut: 1.5 mm
- Material: Carbide
- Overall Length: 50 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.24 in
- Shank Diameter - Metric: 6 mm
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 0.059 in
- Cutting Direction: Right Hand
- Extended Reach: No
- Flute Direction: R
- Length of Cut - Metric: 1.5 mm
- Material Grade: Micrograin
- Neck Length: 0.14 in
- Nose Radius: 0.03 in
- Overall Length - Metric: 50 mm
- Part Number: 03171266
- Reach Length: 0.2 in
- Series/List: JMB542
- Shank Type: Cylindrical
- Variable Helix: No
- Flute Type: Spiral
- Variable Index: No
Application:
Seco Tools 03171266 0.0590 in | 2 | 0.0600 in | Solid Carbide | 1.9700 in | Ball End Mill
