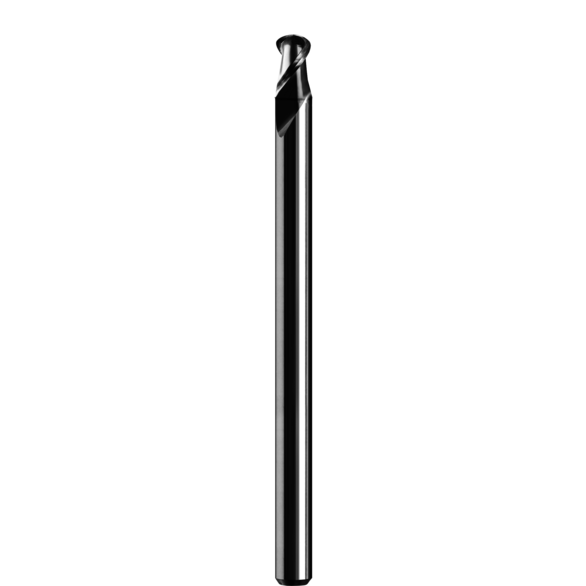

SGS 00694 M2B Stub Length Ball End Mill, 0.03 in Dia Cutter, 0.045 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated
SGS 00694
$27.04
/ EA
Out of Stock
- Mill Diameter: 0.03 in
- Mill Diameter - Decimal: 0.03 in
- Mill Diameter - Metric: 0.76 mm
- Number of Flutes: 2
- Length of Cut: 0.045 in
- Material: Carbide
- Overall Length: 1.5 in
- Shank Diameter: 0.125 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Finish/Coating: Uncoated
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 0.03 in
- Cutting Diameter: 0.03 in
- Cutting Direction: Right Hand
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.045 in
- Length of Cut - Metric: 1.14 mm
- Overall Length - Decimal: 1.5 in
- Overall Length - Fractional: 1-1/2 in
- Overall Length - Metric: 38.1 mm
- Part Number: 00694
- Series: M2B
- Shank Length: 1.455 in
- Shank Type: Common
- Type: Stub Length
- Flute Type: Spiral
EM .030X.045X1/8X1-1/2 2F BN CARBIDE
