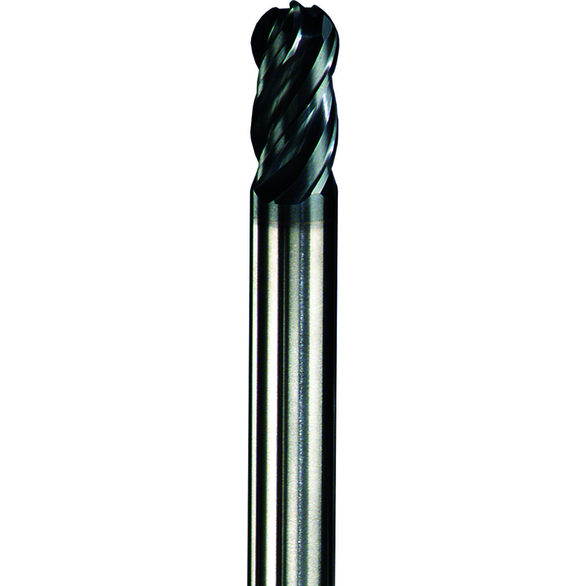

SGS 36357 Z1B Ball Nose End Fractional High Performance High Performance End Mill, 5/32 in Dia Cutter, 7/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, TA Coated
- Mill Diameter: 0.1562 in
- Mill Diameter - Decimal: 0.1562 in
- Mill Diameter - Fractional: 5/32 in
- Mill Diameter - Metric: 3.97 mm
- Number of Flutes: 4
- Length of Cut: 0.4375 in
- Material: Carbide
- Overall Length: 2 in
- Shank Diameter: 0.187 in
- Shank Diameter - Decimal: 0.187 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.75 mm
- Finish/Coating: TX
- Single or Double End: Single End
- Helix Angle: 35 - 38 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 5/32 in
- Cutter Diameter - Fractional: 5/32 in
- Cutting Direction: Right Hand
- Extended Reach: No
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.4375 in
- Length of Cut - Fractional: 7/16 in
- Length of Cut - Metric: 11.11 mm
- Overall Length - Decimal: 2 in
- Overall Length - Metric: 50.8 mm
- Series: Z1B
- Shank Length: 1.563 in
- Shank Type: Straight
- Type: Ball Nose End Fractional High Performance
- Flute Type: Spiral
The Z-Carb family of end mills maximizes stock removal and improves productivity in most milling applications. The Z-Carb family of end mills are the first and original variable geometry end mill that changed the entire industry. By drastically reducing chatter, increasing tool life and optimizing cost savings, the Z-Carb changed the way we machine forever.
- The first and best chatter resistant end mill on the market
- Optimal material removal rates through increased feed and depths of cut
- Improved surface finish and tool life through controlled consistent performance
- Positive rake angle
- External coolant
- Unequal flute spacing
- Applicable materials: steels, stainless steel, cast iron and titanium
- =0/-0.0012 in D1, H6 D2 tolerances
Application: Aerospace, Medical, Power Generation, Automotive, Mold and Die, Castings and Foundries, General Engineering
SGS® High Performance End Mill | Ball End Medium Length | Series: Z-Carb™ | Z1B | 5/32 in Cutter Dia | 2 in Overall Length | 7/16 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/16 in Shank Dia | Right Hand Cutting | 35 to 38 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | AlTiN Coated
