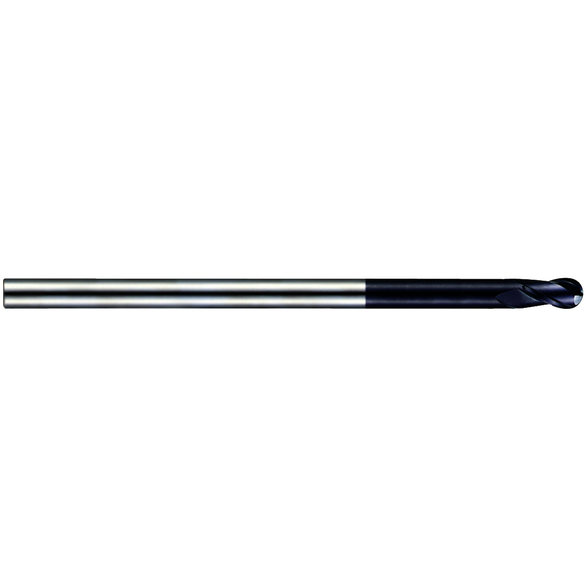

YG-1 93586 EM962 X-POWER Ball Nose Center Cut High Performance Imperial Long Reach End Mill, 3/4 in Dia Cutter, 1.0833 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 10 in OAL, AlTiN Coated
YG1 93586
$596.78
/ EA
Out of Stock
- Mill Diameter: 0.75 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Number of Flutes: 2
- Length of Cut: 1.5 in
- Material: Carbide
- Overall Length: 10 in
- Shank Diameter: 0.75 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Finish/Coating: AlTiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Corner Radius: 3/8 in
- Cutting Direction: Right Hand
- Diameter: 3/4 in
- Diameter - Fractional: 3/4 in
- End Type: Ball Nose
- Flute Direction: Right Hand
- Length of Cut - Decimal: 1.5 in
- Length of Cut - Fractional: 1-1/2 in
- Length of Cut - Metric: 38.1 mm
- Length Type: Long Reach Length
- Overall Length - Decimal: 10 in
- Overall Length - Metric: 254 mm
- Series: EM962
- Flute Type: Spiral
- Diameter - Metric: 19.05 mm
- Diameter - Decimal: 0.75 in
- Type: High Performance
Features and Benefits:
Longer overall length than EM209, EM210 type and suitable for machining deeply located area.
