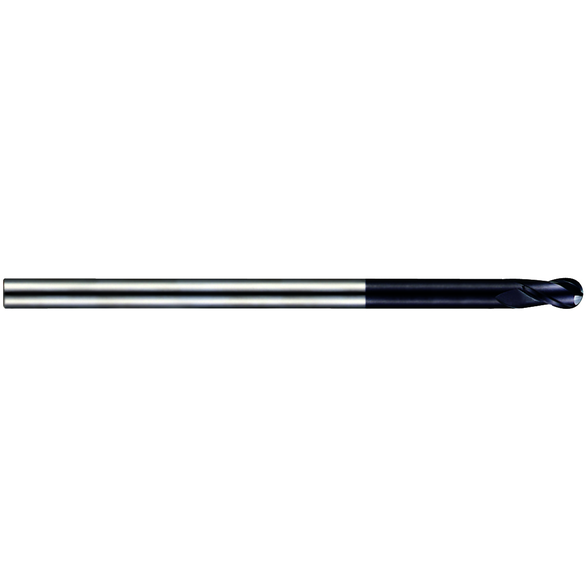

YG-1 EM838030 EM838 X-POWER Ball Nose Center Cut High Performance Long Reach Metric End Mill, 3 mm Dia Cutter, 8 mm Length of Cut, 2 Flutes, 3 mm Dia Shank, 100 mm OAL, AlTiN Coated
YG1 EM838030
$58.48
/ EA
Out of Stock
- Mill Diameter: 3 mm
- Mill Diameter - Decimal: 0.1181 in
- Mill Diameter - Metric: 3 mm
- Number of Flutes: 2
- Length of Cut: 8 mm
- Material: Carbide
- Overall Length: 100 mm
- Shank Diameter: 3 mm
- Shank Diameter - Decimal: 0.1181 in
- Shank Diameter - Metric: 3 mm
- Finish/Coating: AlTiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Direction: Right Hand
- Diameter: 0.11811 in
- Diameter - Decimal: 0.11811 in
- Diameter - Metric: 3 mm
- End Type: Ball Nose
- Grade: X-Power
- Length of Cut - Decimal: 0.315 in
- Length of Cut - Metric: 8 mm
- Nose Radius: 1.5 mm
- Overall Length - Decimal: 3.937 in
- Overall Length - Metric: 100 mm
- Series: EM838
- Type: High Performance
- Flute Type: Spiral
- Finish: TiAlN
- Flute Direction: Right Hand
2 Flute Long Reach Ball X-Power
- Longer Overall Length Than Em813 Type
Yg-1 Cutting Tools Em838030 Mill Diameter 3.0000 Mm | Number Of Flutes 2 | Length Of Cut 8.0000 Mm | Carbide | 100.0000 Mm | Ball End Mill
