YG-1 Cutting Tools

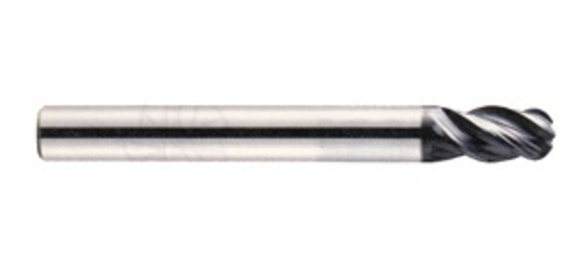

YG-1 EMB79040 EMB79 V7 Mill INOX Ball Nose Regular Length End Mill, 5/8 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-1/2 in OAL, AlTiN Coated

YG1 EMB79040
$253.82 / EA
  • Mill Diameter: 0.625 in
  • Mill Diameter - Decimal: 0.625 in
  • Mill Diameter - Fractional: 5/8 in
  • Mill Diameter - Metric: 15.87 mm
  • Number of Flutes: 4
  • Length of Cut: 1.25 in
  • Material: Carbide
  • Overall Length: 3.5 in
  • Shank Diameter: 0.625 in
  • Shank Diameter - Decimal: 0.625 in
  • Shank Diameter - Fractional: 5/8 in
  • Shank Diameter - Metric: 15.87 mm
  • Finish/Coating: AlTiN
  • Single or Double End: Single End
  • Centercutting: Center Cutting
  • Coolant Through: No
  • Corner Radius: +/- 0.0004 in
  • Cutting Direction: Right Hand
  • Diameter: 5/8 in
  • End Type: Ball Nose
  • Flute Type: Finisher
  • Length of Cut - Decimal: 1.25 in
  • Length of Cut - Fractional: 1-1/4 in
  • Length of Cut - Metric: 31.75 mm
  • Overall Length - Decimal: 3.5 in
  • Overall Length - Fractional: 3-1/2 in
  • Overall Length - Metric: 88.9 mm
  • Shank Type: Flat
  • Type: High Performance
  • Diameter - Fractional: 5/8 in
  • Diameter - Decimal: 0.625 in
  • Diameter - Metric: 15.87 mm
  • Flute Direction: Right Hand
Features and Benefits:

Special flute geometry and multiple helix eliminate vibrations.
Designed for mild steels, stainless steel, cast iron, tool steels, titanium alloys, prehardened steels and low hardness material.
Excellent work piece finishes.
Higher speeds, deeper cuts and higher metal removal rates.
