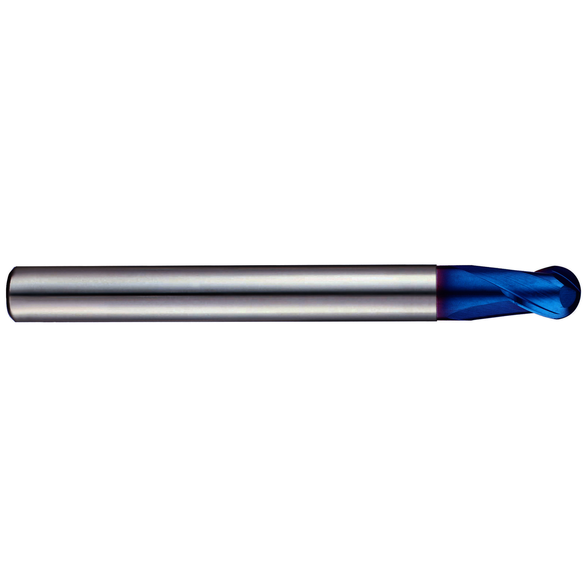

YG-1 G8A38080 G8A38 X5070 Ball Nose Center Cut Metric Stub Length End Mill With Extended Neck, 8 mm Dia Cutter, 8 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 100 mm OAL, Blue Coated
YG1 G8A38080
$114.52
/ EA
Out of Stock
- Mill Diameter: 8 mm
- Mill Diameter - Decimal: 0.315 in
- Mill Diameter - Metric: 8 mm
- Number of Flutes: 2
- Length of Cut: 8 mm
- Material: Carbide
- Overall Length: 100 mm
- Shank Diameter: 8 mm
- Shank Diameter - Decimal: 0.315 in
- Shank Diameter - Metric: 8 mm
- Finish/Coating: Blue
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Direction: Right Hand
- Diameter: 0.31496 in
- Diameter - Metric: 8 mm
- End Type: Ball Nose
- Finish: Blue
- Flute Direction: Right Hand
- Grade: X-5070
- Length of Cut - Decimal: 0.315 in
- Length of Cut - Metric: 8 mm
- Neck Diameter: 0.31102 in
- Neck Diameter - Decimal: 0.31102 in
- Neck Diameter - Metric: 7.9 mm
- Overall Length - Decimal: 3.937 in
- Overall Length - Metric: 100 mm
- Series: G8A38
- Length Type: Stub Length
- Flute Type: Spiral
- Diameter - Decimal: 0.31496 in
- Type: High Performance
Features and Benefits:
Designed to machine high hardened materials.
Suitable for dry cutting, high speed cutting due to newly developed raw-material and new coating.
Excellent workpiece finish.
Designed for high precision milling operation.
Higher wear-resistance.
Designed to machine high hardened materials.
Suitable for dry cutting, high speed cutting due to newly developed raw-material and new coating.
Excellent workpiece finish.
Designed for high precision milling operation.
Higher wear-resistance.
