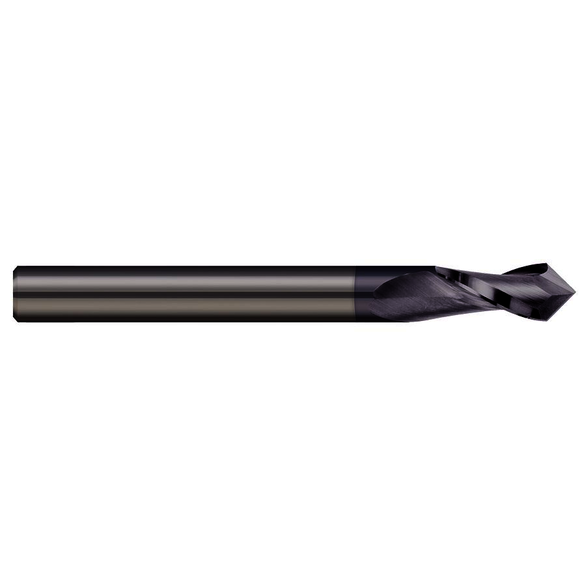

MIC100 DM-375-490X 0.3750" (3/8) Cutter DIA x 1.000" (1) LOC x 90° included - 4 FL - AlTiN Coated
MIC100 DM-375-490X
$90.04
/ EA
Out of Stock
- Material: Carbide
- Mill Diameter: 0.375 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Point Angle: 90 deg
- Length of Cut: 1 in
- Shank Diameter: 0.375 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Number of Flutes: 4
- Finish/Coating: AlTiN
- Overall Length: 2.5 in
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Fractional: 3/8 in
- Flute Direction: Right Hand
- Flute Length: 1 in
- Helix Angle: 30 deg
- Included Angle: 90 deg
- Length of Cut - Metric: 25.4 mm
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Part Number: DM-375-490X
- Type: Drill Mills
- Diameter - Metric: 9.525 mm
- Carbide drill mills offer excellent wear resistance and heat resistance, and they are harder than high-speed steel drill mills
- These drill mills have an AlTiN coating that protects them from wear and provides better resistance to high heat than TiN, TiCN, and TiAlN coatings
- AlTiN-coated drill mills are used for milling hard and abrasive materials
Micro 100 DM-375-490X 3/8 in | 1.0000 in | 2 | Carbide | Drill Mill
