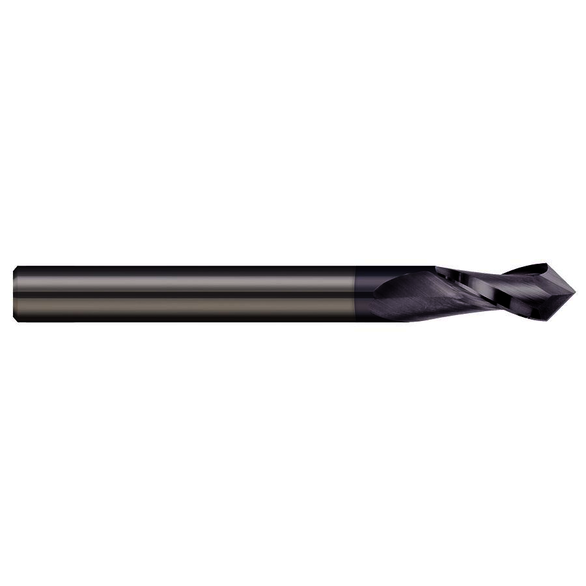

MIC100 DM-625-490X 0.6250" (5/8) Cutter DIA x 1.250" (1-1/4) LOC x 90° included - 4 FL - AlTiN Coated
MIC100 DM-625-490X
$258.80
/ EA
Out of Stock
- Material: Carbide
- Mill Diameter: 0.625 in
- Mill Diameter - Decimal: 0.625 in
- Mill Diameter - Fractional: 5/8 in
- Mill Diameter - Metric: 15.875 mm
- Point Angle: 90 deg
- Length of Cut: 1.25 in
- Shank Diameter: 0.625 in
- Shank Diameter - Decimal: 0.625 in
- Shank Diameter - Fractional: 5/8 in
- Shank Diameter - Metric: 15.875 mm
- Number of Flutes: 4
- Finish/Coating: AlTiN
- Overall Length: 3.5 in
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Metric: 15.87 mm
- Flute Direction: Right Hand
- Flute Length: 1.25 in
- Helix Angle: 30 deg
- Included Angle: 90 deg
- Length of Cut - Fractional: 1-1/4 in
- Overall Length - Decimal: 3.5 in
- Overall Length - Fractional: 3-1/2 in
- Overall Length - Metric: 88.9 mm
- Part Number: DM-625-490X
- Type: Drill Mills
- Diameter - Fractional: 5/8 in
- Carbide drill mills offer excellent wear resistance and heat resistance, and they are harder than high-speed steel drill mills
- These drill mills have an AlTiN coating that protects them from wear and provides better resistance to high heat than TiN, TiCN, and TiAlN coatings
- AlTiN-coated drill mills are used for milling hard and abrasive materials
Micro 100 DM-625-490X 5/8 in | 1-1/4 in | 4 | Carbide | Drill Mill
