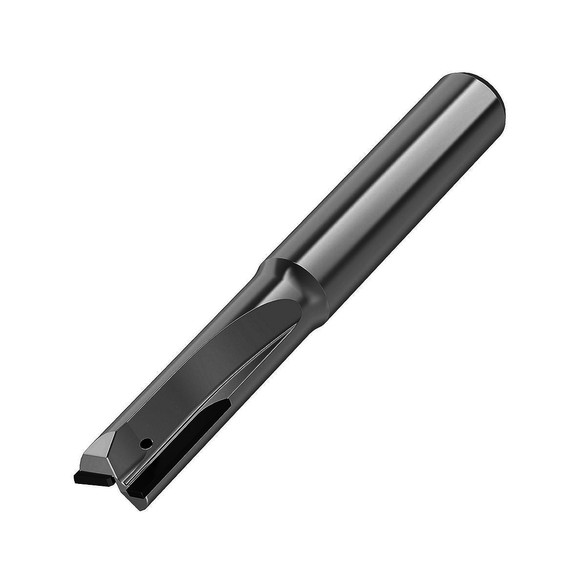

KENNAM 6752759 0.0150 in Corner Rad, 0.7500 in Mill Dia, 1.0000 in LOC, 4.2500 in OAL, 2 Flutes, Diamond, Uncoated, Corner Radius & Corner Chamfer End Mill
KENNAM 6752759
$892.40
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Corner Radius: 0.015 in
- Number of Flutes: 2
- Material: Carbide
- Finish/Coating: Diamond
- Length of Cut: 1 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Overall Length: 4-1/4 in
- Centercutting: Center Cutting
- Center Cutting: Center Cutting
- Chipbreaker: No
- Corner Radius - Decimal: 0.015 in
- End Type: Corner Radius
- Flute Direction: Right Hand
- Flute Type: Straight
- Hand of Tool: R - Right
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Overall Length - Decimal: 4.25 in
- Overall Length - Fractional: 4-1/4 in
- Overall Length - Metric: 107.95 mm
- Shank Type: Straight Shank
- Single or Double End: Single End
- Variable Index: No
- Variable Helix: No
Standard/Approvals: ALCC2RA0750N113HAR015I
Application: Face MillingFace MillingSide Milling/Shoulder Milling: RoughingSide Milling/Shoulder Milling: Square EndTrochoidal MillingSlotting: Square EndSlotting: Square EndHelical MillingPlunge MillingPocketingRamping: BlankDrilling100665610
Kennametal 6752759 0.75 in Dia | 2 Flute | Solid Carbide | 0.0150 in | Uncoated | Corner Radius & Corner Chamfer End Mill
