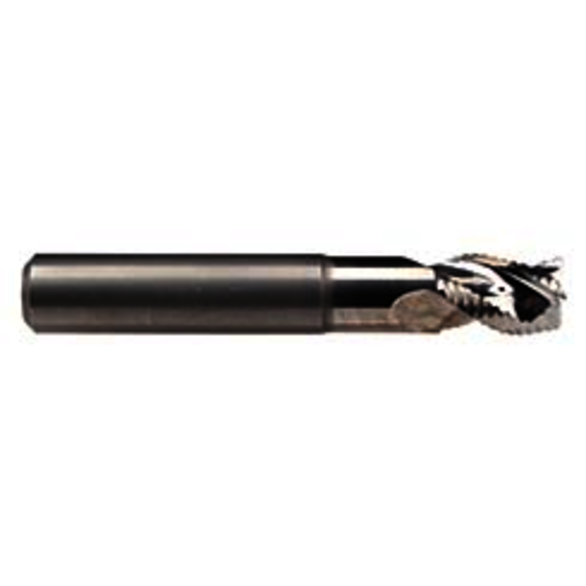

Emuge 2888 Z.0500 Square End Mills 1/2in Milling Dia, 5/8in LOC, 3-1/4in OAL, 3 Flutes, Carbide
EMUGE 2888 Z.0500
$323.76
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Mill Diameter - Metric: 12.7 mm
- Length of Cut: 5/8 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Material: Carbide
- Finish/Coating: Uncoated
- Overall Length: 3-1/4 in
- Helix Angle: 40 deg
- Coolant Through: Yes
- Cutter Diameter: 1/2 in
- Cutter Diameter - Fractional: 1/2 in
- Cutting Direction: Right Hand
- Length of Cut - Decimal: 0.625 in
- Length of Cut - Fractional: 5/8 in
- Length of Cut - Metric: 15.875 mm
- Number of Flutes: 3
- Overall Length - Decimal: 3.25 in
- Overall Length - Fractional: 3-1/4 in
- Overall Length - Metric: 82.55 mm
- Series: Alu-Cut 2888 Z
- Single or Double End: Single End
- Flute Type: Spiral
- Shank Type: Cylindrical
- Flute Direction: Right Hand
- Highest metal removal rates for stable milling processes
- Combination axial and radial coolant hole channels
- 3 flute designs with short flute lengths
- Chamfer corners for additional tool life
- Aggressive 40 deg helix angle
- Available bright finished for aluminum alloys
- CRN coated for high silicon aluminum alloys as well as copper alloys
