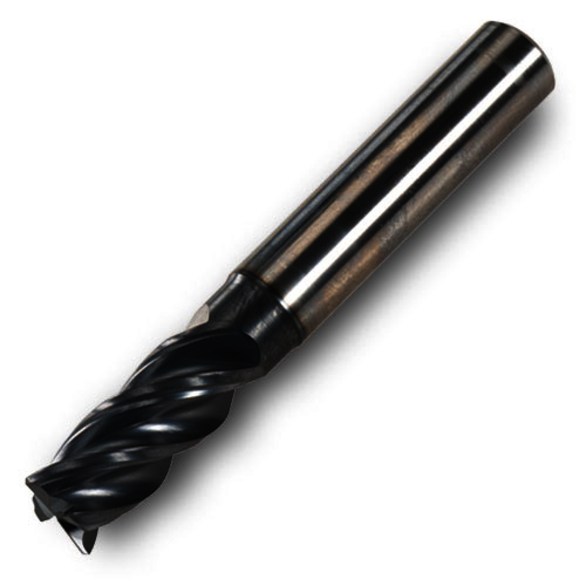

INGCUT 3032237 IN2005 Solid Carbide 0.25 Dia End Mill
INGCUT 3032237
$61.80
/ EA
Out of Stock
- Mill Diameter: 1/4 in
- Pitch: Variable
- Length of Cut: 1/2 in
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: Cylindrical .250"
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Material: Solid Carbide
- Overall Length: 2-1/2 in
- Helix Angle: 35 deg;37 deg
- Corner Radius: 0.01 in
- Cutter Pitch: Unequal
- Diameter: 1/4 in
- Diameter - Fractional: 1/4 in
- Diameter - Metric: 6.35 mm
- Grade: IN2005
- Radius: 0.01 in
- Series: 47D_RQ
- Diameter - Decimal: 0.25 in
- Shank Type: Cylindrical
- Number of Flutes: 4
- Ø.250-1.000" (Cylindrical or Weldon)
- 4 Flute, comibation variable 35-37° helix and variable pitch Excellent chatter dampening
- Suitable for all types of steel and high temperature alloys
- Used for very high material removal rates in roughing and finishing operations
- Full slot milling up to 2×D
Applications:
Ingersoll Cutting Tools 3032237 0.250 Dia | 35 Degree;37 Degree | Solid Carbide | Roughing & Finishing End Mill
