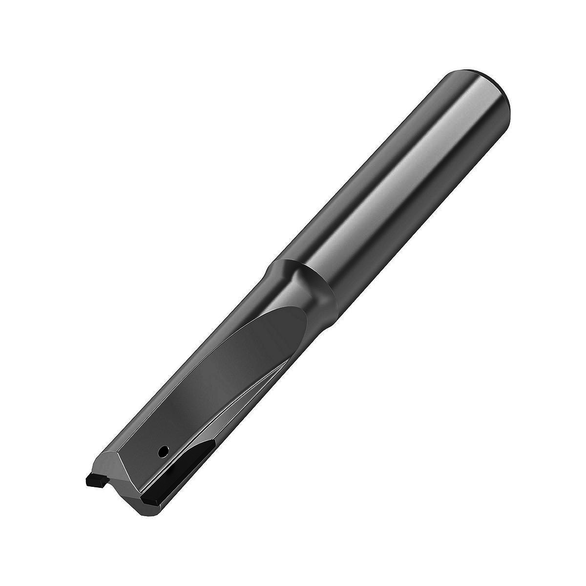

KENNAM 6752771 0.0079 in Corner Rad, 0.2362 in Mill Dia, 0.2362 in LOC, 2.2441 in OAL, 2 Flutes, Diamond, Uncoated, Corner Radius & Corner Chamfer End Mill
KENNAM 6752771
$334.00
/ EA
Out of Stock
- Mill Diameter: 6 mm
- Mill Diameter - Metric: 6 mm
- Length of Cut: 6 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.2362 in
- Shank Diameter - Metric: 6 mm
- End Type: Corner Radius
- Material: Carbide
- Finish/Coating: Diamond
- Overall Length: 57 mm
- Centercutting: No Center Cutting
- Center Cutting: No Center Cutting
- Chipbreaker: No
- Corner Radius: 0.2 mm
- Corner Radius - Metric: 0.2 mm
- Flute Direction: Right Hand
- Flute Type: Helical
- Hand of Tool: R - Right
- Length of Cut - Metric: 6 mm
- Number of Flutes: 2
- Overall Length - Decimal: 2.24 in
- Overall Length - Metric: 57 mm
- Shank Type: Straight Shank
- Single or Double End: Single End
- Variable Helix: No
- Variable Index: No
Standard/Approvals: ALCB2RA0600N006HAR020IM
Application: Face MillingFace MillingSide Milling/Shoulder Milling: RoughingSide Milling/Shoulder Milling: Square EndTrochoidal MillingSlotting: Square EndSlotting: Square End
Kennametal 6752771 0.2362 in Dia | 2 Flute | Solid Carbide | 0.0079 in | Uncoated | Corner Radius & Corner Chamfer End Mill
