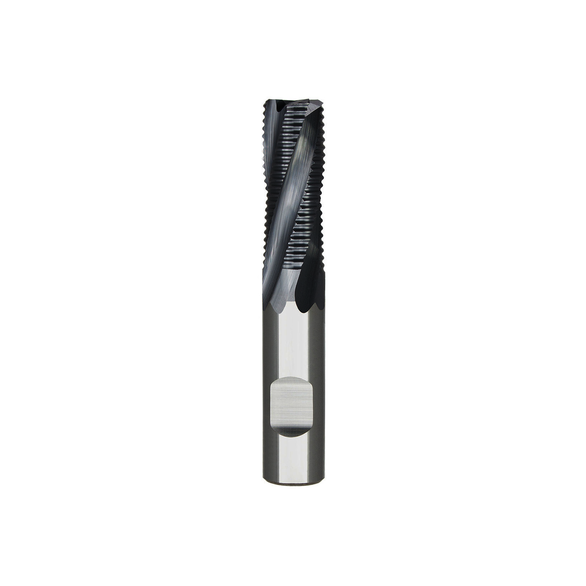

Niagara Cutter 17000976 Elite SR420M Center Cutting High Performance Short Length Single End End Mill, 16 mm Dia Cutter, 1 mm Corner Radius, 36 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 93 mm OAL, AlTiN Coated
NIACUT 17000976
$232.38
/ EA
Out of Stock
- Mill Diameter: 16 mm
- Mill Diameter - Metric: 16 mm
- Pitch: Fine
- Length of Cut: 36 mm
- Shank Diameter: 16 mm
- Shank Diameter - Decimal: 0.62992 in
- Shank Diameter - Metric: 16 mm
- End Type: Corner Radius
- Material: Carbide
- Finish/Coating: AlTiN
- Overall Length: 93 mm
- Centercutting: Center Cutting
- Helix Angle: 20 deg
- Chamfer Width: 1 mm
- Chamfer Width - Metric: 1 mm
- Corner Radius: 1 mm
- Corner Radius - Metric: 1 mm
- Cutter Diameter: 16 mm
- Cutting Direction: Right Hand
- Diameter: 16 mm
- Length of Cut - Metric: 36 mm
- Overall Length - Metric: 93 mm
- Single or Double End: Single End
- Flute Type: Spiral
- Cutter Diameter - Metric: 16 mm
- Diameter - Metric: 16 mm
- Shank Type: Cylindrical
- Number of Flutes: 4
- Flute Direction: Right Hand
- Fine pitch knuckle profile
- Designed for steel and stainless steel
Niagara Cutter End Mill | Center Cutting High Performance Short Length Single End | Series: Elite SR420M | 16 mm Cutter Dia | 1 mm Corner Radius | 93 mm Overall Length | 36 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 16 mm Shank Dia | Right Hand Cutting | 20 deg Helix Angle | Cylindrical Shank | ANSI Code: SR420M-160-D2-C100.0-Z4 | ISO Code: SR420M160D2C100.0Z4 | Solid Carbide | AlTiN Coated
