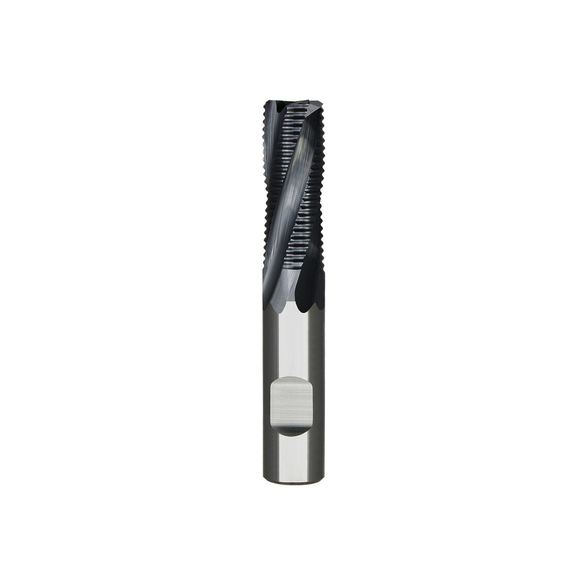

Niagara Cutter 17004623 Elite SR420 Center Cutting Corner Chamfer High Performance Medium Length Single End Roughing End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL, Uncoated
NIACUT 17004623
$144.38
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Mill Diameter - Metric: 12.7 mm
- Pitch: Fine
- Length of Cut: 1-1/4 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- End Type: Corner Chamfer
- Material: Carbide
- Finish/Coating: Bright / Uncoated
- Overall Length: 3 in
- Centercutting: Center Cutting
- Helix Angle: 20 deg
- Chamfer Angle: 45 deg
- Cutter Diameter: 1/2 in
- Cutter Diameter - Fractional: 1/2 in
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Flute Type: Fine Pitch/Spiral
- Length of Cut - Decimal: 1.25 in
- Length of Cut - Fractional: 1-1/4 in
- Length of Cut - Metric: 31.75 mm
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Series: SR420
- Shank Type: Weldon Flat
- Type: Center Cutting
- Diameter - Fractional: 1/2 in
- Diameter - Metric: 12.7 mm
- Number of Flutes: 4
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 0.025 in W corner chamfer
- 1.781 in L minimum clamping
- 20 deg axial rake
- 10 deg side rake
- 45 deg chamfer
- Weldon flat standard on shank sizes 3/8 in and larger
- D - Cylindrical tool shape
- Fine pitch knuckle profile
- Designed for steel and stainless stee
Niagara Cutter Roughing End Mill | Center Cutting Corner Chamfer High Performance Medium Length Single End | Series: Elite SR420 | 1/2 in Cutter Dia | 3 in Overall Length | 1/2 in | 1-1/4 in Maximum Depth of Cut | 4 Flutes | Fine Pitch/Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 20 deg Helix Angle | Weldon Flat Shank | ANSI Code: SR420-0.500-D3-C025.3-Z4 | ISO Code: SR420.500D3C025.3Z4 | Solid Carbide | Uncoated
