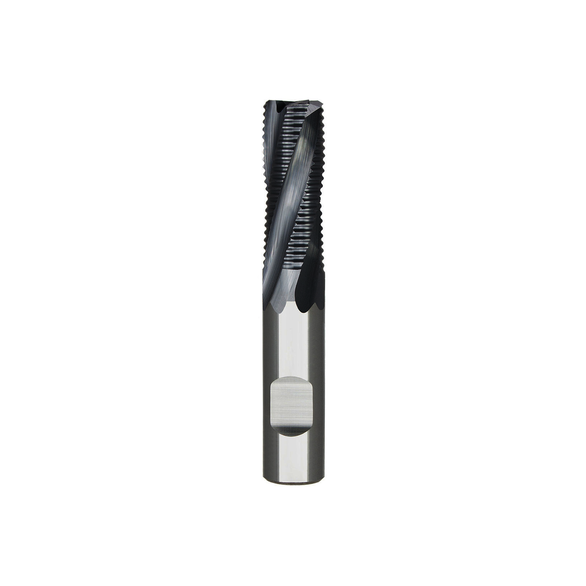

Niagara Cutter 17004672 Elite SR420 Center Cutting Corner Chamfer High Performance Single End Stub Length Roughing End Mill, 5/8 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3 in OAL, AlTiN Coated
NIACUT 17004672
$231.88
/ EA
Out of Stock
- Mill Diameter: 5/8 in
- Mill Diameter - Decimal: 0.625 in
- Mill Diameter - Fractional: 5/8 in
- Mill Diameter - Metric: 15.875 mm
- Pitch: Fine
- Length of Cut: 3/4 in
- Shank Diameter: 5/8 in
- Shank Diameter - Decimal: 0.625 in
- Shank Diameter - Fractional: 5/8 in
- Shank Diameter - Metric: 15.875 mm
- End Type: Corner Chamfer
- Material: Carbide
- Finish/Coating: AlTiN
- Overall Length: 3 in
- Centercutting: Center Cutting
- Helix Angle: 20 deg
- Cutter Diameter: 5/8 in
- Cutting Direction: Right Hand
- Diameter: 5/8 in
- Flute Type: Fine Pitch/Spiral
- Length of Cut - Decimal: 0.75 in
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Shank Type: Weldon Flat
- Cutter Diameter - Fractional: 5/8 in
- Diameter - Fractional: 5/8 in
- Diameter - Metric: 15.87 mm
- Number of Flutes: 4
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
- 90 deg cutting edge
- 0.025 in W corner chamfer
- 1.906 in L minimum clamping
- 20 deg axial rake
- 10 deg side rake
- 45 deg chamfer
- Weldon flat standard on shank sizes 3/8 in and larger
- D - Cylindrical tool shape
- Fine pitch knuckle profile
- Designed for steel and stainless stee
Niagara Cutter Roughing End Mill | Center Cutting Corner Chamfer High Performance Single End Stub Length | Series: Elite SR420 | 5/8 in Cutter Dia | 3 in Overall Length | 5/8 in | 3/4 in Maximum Depth of Cut | 4 Flutes | Fine Pitch/Spiral Flute | 5/8 in Shank Dia | Right Hand Cutting | 20 deg Helix Angle | Weldon Flat Shank | ANSI Code: SR420-0.625-D1-C025.3-Z4 | ISO Code: SR420.625D1C025.3Z4 | Solid Carbide | AlTiN Coated
