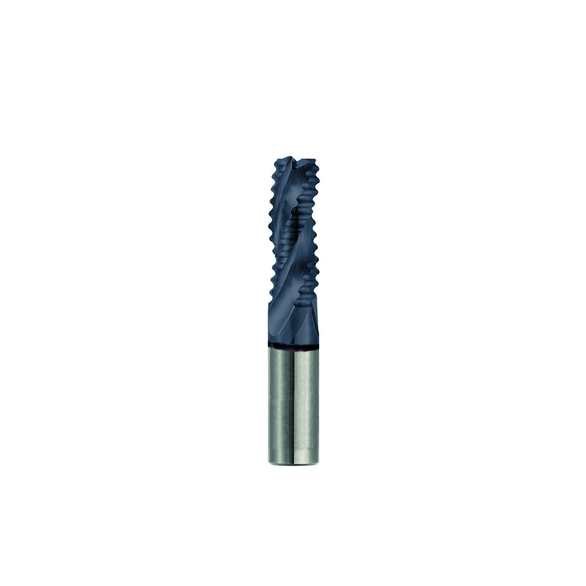

Niagara Cutter 17004690 Elite AR330 Center Cutting High Performance Single End Stub Length End Mill, 3/4 in Dia Cutter, 0.025 in Corner Radius, 1 in Length of Cut, 3 Flutes, 3/4 in Dia Shank, 3 in OAL, Uncoated
NIACUT 17004690
$241.50
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Pitch: Coarse
- Length of Cut: 1 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Material: Carbide
- Finish/Coating: Bright / Uncoated
- Overall Length: 3 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Chamfer Angle: 45 deg
- Chamfer Width: 0.025 in
- Chamfer Width - Decimal: 0.025 in
- Corner Radius: 0.025 in
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Cutting Direction: Right Hand
- Diameter: 3/4 in
- Finish: Uncoated
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Number of Flutes: 3
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Series: AR330
- Single or Double End: Single End
- Type: Center Cutting;High Performance
- Flute Type: Spiral
- Diameter - Metric: 19.05 mm
- Diameter - Decimal: 0.75 in
- Diameter - Fractional: 3/4 in
- Shank Type: Cylindrical
- Flute Direction: Right Hand
- Form ground flute shape
- Ideal for aluminum and non-ferrous materials
- Reduced radial pressure
Slotting, Pocketing and Profiling
Niagara Cutter End Mill | Center Cutting High Performance Single End Stub Length | Series: Elite AR330 | 3/4 in Cutter Dia | 0.025 in Corner Radius | 3 in Overall Length | 1 in Maximum Depth of Cut | 3 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: AR330-0.750-D1-C025.0-Z3 | ISO Code: AR330.750D1C025.0Z3 | Solid Carbide | Uncoated
