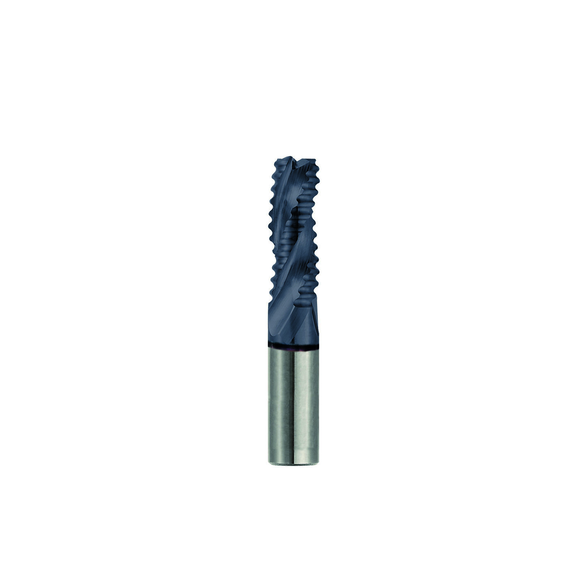

Niagara Cutter 17004715 Elite AR330 Center Cutting High Performance Medium Length Single End End Mill, 3/8 in Dia Cutter, 0.02 in Corner Radius, 1 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiCN Coated
NIACUT 17004715
$116.38
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Pitch: Coarse
- Length of Cut: 1 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Material: Carbide
- Finish/Coating: TiCN
- Overall Length: 2-1/2 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Chamfer Angle: 45 deg
- Chamfer Width: 0.02 in
- Chamfer Width - Decimal: 0.02 in
- Corner Radius: 0.02 in
- Cutter Diameter: 3/8 in
- Cutter Diameter - Fractional: 3/8 in
- Cutting Direction: Right Hand
- Diameter: 3/8 in
- Finish: TiCN Coated
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Number of Flutes: 3
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Series: AR330
- Single or Double End: Single End
- Type: Center Cutting
- Flute Type: Spiral
- Diameter - Fractional: 3/8 in
- Diameter - Metric: 9.525 mm
- Diameter - Decimal: 0.375 in
- Shank Type: Cylindrical
- Flute Direction: Right Hand
- Form ground flute shape
- Ideal for aluminum and non-ferrous materials
- Reduced radial pressure
Slotting, Pocketing and Profiling
Niagara Cutter End Mill | Center Cutting High Performance Medium Length Single End | Series: Elite AR330 | 3/8 in Cutter Dia | 0.02 in Corner Radius | 2-1/2 in Overall Length | 1 in Maximum Depth of Cut | 3 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: AR330-0.375-D3-C020.0-Z3 | ISO Code: AR330.375D3C020.0Z3 | Solid Carbide | TiCN Coated
