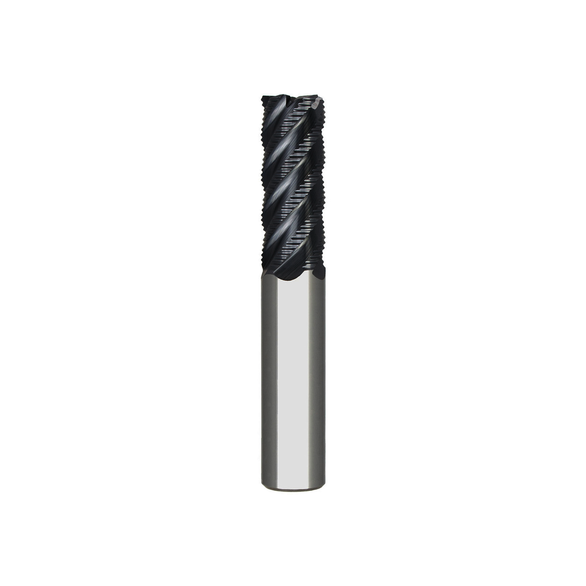

Niagara Cutter 17007614 Elite SR545 Center Cutting High Performance Short Length Single End End Mill, 1 in Dia Cutter, 0.025 in Corner Radius, 2 in Length of Cut, 5 Flutes, 1 in Dia Shank, 4 in OAL, AlTiN Coated
NIACUT 17007614
$772.63
/ EA
Out of Stock
- Mill Diameter: 1 in
- Mill Diameter - Decimal: 1 in
- Mill Diameter - Metric: 25.4 mm
- Pitch: Fine
- Length of Cut: 2 in
- Shank Diameter: 1 in
- Shank Diameter - Decimal: 1 in
- Shank Diameter - Metric: 25.4 mm
- End Type: Square
- Material: Carbide
- Finish/Coating: AlTiN
- Overall Length: 4 in
- Centercutting: Center Cutting
- Helix Angle: 45 deg
- Chamfer Angle: 45 deg
- Chamfer Width: 0.025 in
- Chamfer Width - Decimal: 0.025 in
- Corner Radius: 0.025 in
- Cutter Diameter: 1 in
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Metric: 25.4 mm
- Length of Cut - Decimal: 2 in
- Length of Cut - Metric: 50.8 mm
- Number of Flutes: 5
- Overall Length - Decimal: 4 in
- Overall Length - Metric: 101.6 mm
- Series: SR545
- Single or Double End: Single End
- Type: Center Cutting;High Performance
- Flute Type: Spiral
- Shank Type: Cylindrical
- Flute Direction: Right Hand
- Fine pitch knuckle profile
- High shearing action to reduce radial deflection
Peripheral Milling Applications
Niagara Cutter End Mill | Center Cutting High Performance Short Length Single End | Series: Elite SR545 | 1 in Cutter Dia | 0.025 in Corner Radius | 4 in Overall Length | 2 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 1 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: SR545-1.000-D2-C025.0-Z5 | ISO Code: SR5451.00D2C025.0Z5 | Solid Carbide | AlTiN Coated
