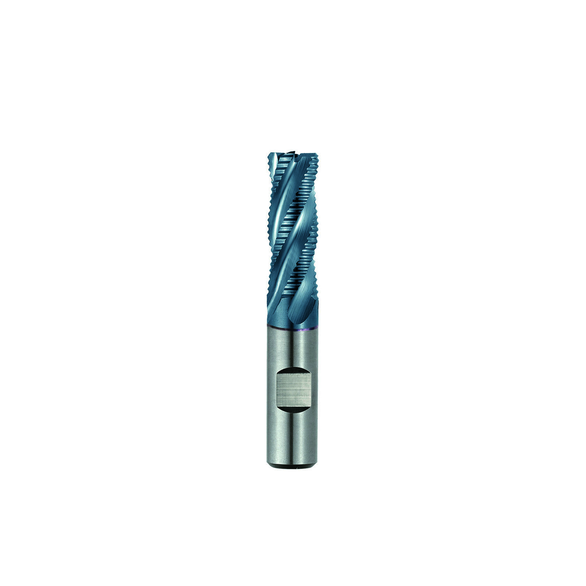

Niagara Cutter 17010367 REM445 Non-Center Cutting Short Length Single End End Mill, 3/8 in Dia Cutter, 0.025 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated
NIACUT 17010367
$44.79
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Pitch: Fine
- Length of Cut: 3/4 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- End Type: Square
- Material: HSS-Co8
- Finish/Coating: Bright / Uncoated
- Overall Length: 2-1/2 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Chamfer Angle: 45 deg
- Chipbreaker: No
- Corner Radius: 0.025 in
- Cutter Diameter: 3/8 in
- Cutter Diameter - Fractional: 3/8 in
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Fractional: 3/8 in
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.75 in
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Number of Flutes: 4
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Series: REM445
- Single or Double End: Single End
- Type: Non-Center Cutting
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Diameter - Metric: 9.525 mm
- Variable Index: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Non-Center Cutting Short Length Single End | Series: REM445 | 3/8 in Cutter Dia | 0.025 in Corner Radius | 2-1/2 in Overall Length | 3/4 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REM445-0.375-D2-C025.3-Z4 | ISO Code: REM445.375D2C025.3Z4 | M42 HSS-Co 8 | Uncoated
