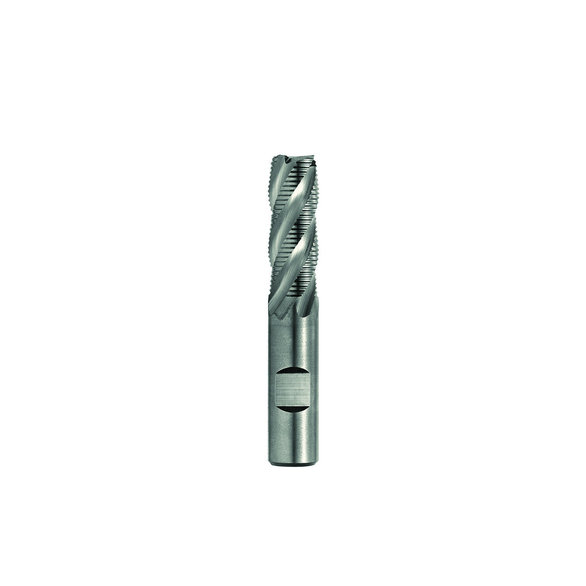

Niagara Cutter 17012328 EXR350 Center Cutting Single End Stub Length End Mill, 1 in Dia Cutter, 0.03 in Corner Radius, 1 in Length of Cut, 5 Flutes, 1 in Dia Shank, 3-1/2 in OAL, TiAlN Coated
NIACUT 17012328
$231.00
/ EA
Out of Stock
- Mill Diameter: 1 in
- Mill Diameter - Decimal: 1 in
- Mill Diameter - Metric: 25.4 mm
- Pitch: Fine
- Length of Cut: 1 in
- Shank Diameter: 1 in
- Shank Diameter - Decimal: 1 in
- Shank Diameter - Metric: 25.4 mm
- Material: HSS-Co8
- Finish/Coating: TiAlN
- Overall Length: 3-1/2 in
- Centercutting: Center Cutting
- Helix Angle: 35 deg
- Chamfer Angle: 45 deg
- Chamfer Width: 0.03 in
- Chamfer Width - Decimal: 0.03 in
- Chipbreaker: No
- Corner Radius: 0.03 in
- Cutter Diameter: 1 in
- Cutting Direction: Right Hand
- Diameter: 1 in
- Diameter - Metric: 25.4 mm
- Finish: TiAlN Coated
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Number of Flutes: 5
- Overall Length - Decimal: 3.5 in
- Overall Length - Fractional: 3-1/2 in
- Overall Length - Metric: 88.9 mm
- Series: EXR350
- Single or Double End: Single End
- Type: Center Cutting
- Variable Helix: No
- Flute Type: Spiral
- Diameter - Decimal: 1 in
- Shank Type: Weldon Flat
- Flute Direction: Right Hand
- Variable Index: No
Slotting, Pocketing and Profiling
Niagara Cutter End Mill | Center Cutting Single End Stub Length | Series: EXR350 | 1 in Cutter Dia | 0.03 in Corner Radius | 3-1/2 in Overall Length | 1 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 1 in Shank Dia | Right Hand Cutting | 35 deg Helix Angle | Weldon Flat Shank | ANSI Code: EXR350-1.000-D1-C030.3-Z5 | ISO Code: EXR3501.000D1C030.3Z5 | 8.5% Cobalt | TiAlN Coated
