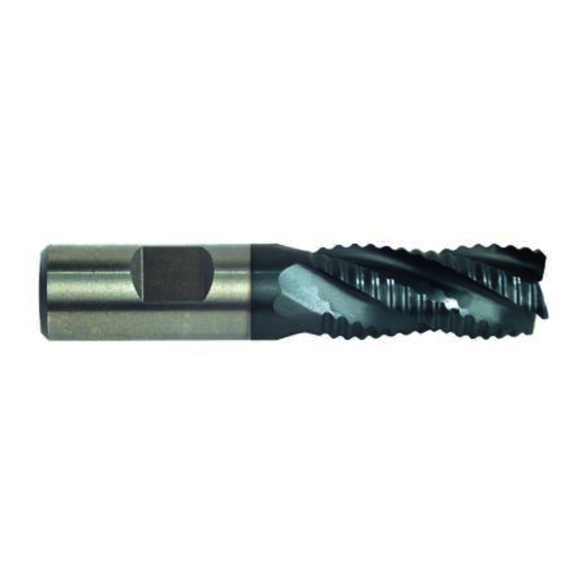

Niagara Cutter 17013491 REM710 Long Length Non-Center Cutting Single End End Mill, 3/8 in Dia Cutter, 0.025 in Corner Radius, 1-1/2 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/4 in OAL, TiCN Coated
NIACUT 17013491
$59.07
/ EA
Out of Stock
- Mill Diameter: 3/8 in, 7/16 in
- Mill Diameter - Decimal: 0.375 in, 0.4375 in
- Mill Diameter - Fractional: 3/8 in, 7/16 in
- Mill Diameter - Metric: 11.1125 mm, 9.525 mm
- Length of Cut: 1 in, 1-1/2 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 2-11/16 in, 3-1/4 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.025 in
- Chamfer Width - Decimal: 0.025 in
- Chipbreaker: No
- Corner Radius: 0.025 in
- Cutter Diameter: 3/8 in, 7/16 in
- Cutter Diameter - Fractional: 3/8 in, 7/16 in
- Cutting Direction: Right Hand
- Length of Cut - Decimal: 1 in, 1.5 in
- Length of Cut - Fractional: 1-1/2 in
- Length of Cut - Metric: 25.4 mm, 38.1 mm
- Number of Flutes: 4
- Overall Length - Decimal: 2.6875 in, 3.25 in
- Overall Length - Fractional: 2-11/16 in, 3-1/4 in
- Overall Length - Metric: 68.2625 mm, 82.55 mm
- Part Number: N69294
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Flute Direction: Right Hand
- Variable Index: No
EM 0.375 X 1.5 X 0.375 X 3.25 4 HSCO TIC
