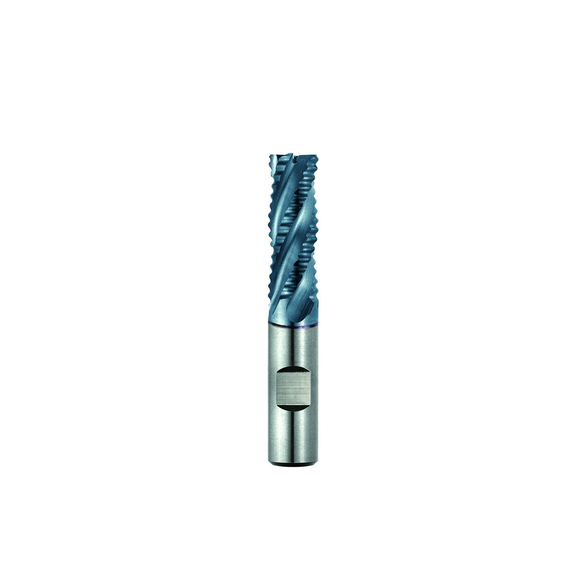

Niagara Cutter 17013510 REM710 Medium Length Non-Center Cutting Single End End Mill, 1-1/4 in Dia Cutter, 0.04 in Corner Radius, 3 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 5-1/2 in OAL, TiCN Coated
NIACUT 17013510
$237.45
/ EA
Out of Stock
- Mill Diameter: 1-1/4 in
- Mill Diameter - Decimal: 1.25 in
- Mill Diameter - Fractional: 1-1/4 in
- Mill Diameter - Metric: 31.75 mm
- Length of Cut: 3 in
- Shank Diameter: 1-1/4 in
- Shank Diameter - Decimal: 1.25 in
- Shank Diameter - Fractional: 1-1/4 in
- Shank Diameter - Metric: 31.75 mm
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 5-1/2 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.04 in
- Chamfer Width - Decimal: 0.04 in
- Chipbreaker: No
- Corner Radius: 0.04 in
- Cutter Diameter: 1-1/4 in
- Cutter Diameter - Fractional: 1-1/4 in
- Cutting Direction: Right Hand
- Flute Direction: Right Hand
- Length of Cut - Decimal: 3 in
- Length of Cut - Metric: 76.2 mm
- Number of Flutes: 6
- Overall Length - Decimal: 5.5 in
- Overall Length - Fractional: 5-1/2 in
- Overall Length - Metric: 139.7 mm
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Variable Index: No
EM 1.25 X 3 X 1.25 X 5.5 6 HSCO TICN
