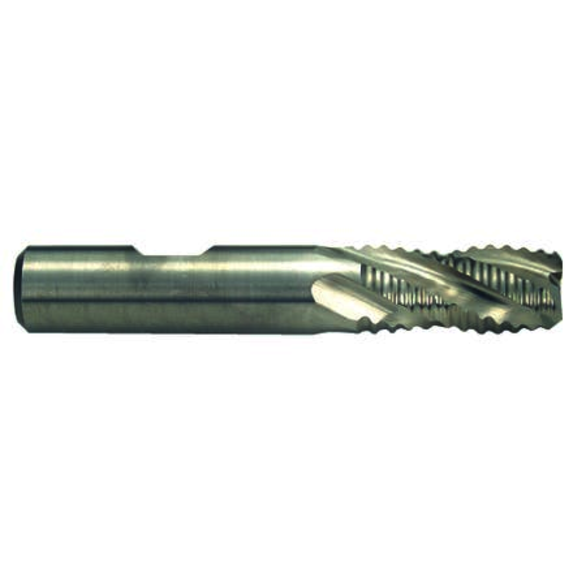

Niagara Cutter 17013599 REC700 Center Cutting Short Length Single End End Mill, 3/8 in Dia Cutter, 0.025 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated
NIACUT 17013599
$49.09
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Length of Cut: 3/4 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Material: HSS-Co8
- Finish/Coating: Bright / Uncoated
- Overall Length: 2-1/2 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Center Cutting: Center-cutting
- Chamfer Length: 0.025 in
- Chamfer Width: 0.025 in
- Chamfer Width - Decimal: 0.025 in
- Chipbreaker: No
- Corner Radius: 0.025 in
- Cutter Diameter: 3/8 in
- Cutter Diameter - Fractional: 3/8 in
- Cutting Direction: Right Hand
- Extended Reach: No
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.75 in
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Length Type: Regular
- Mill Diameter Tolerance: +0.003/-0.000 in
- Number of Flutes: 4
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Part Number: N70023
- Shank Diameter Tolerance: -0.0001/-0.0005 in
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Variable Index: No
- Weldon flat standard
- Designed for profiling and slotting in all materials
- Excellent performance in difficult-to-cut hard materials
- M42 cobalt lasts longer than high-speed steel
- The 8% cobalt content ensures high edge hardness at elevated temperature levels
- Center-cutting end mills can create three-dimensional shapes and profiles
- Lower helix angle of 30° wraps slower and is optimized for the toughest roughing applications
- Titanium Carbo-Nitride (TiCN) coating offers slightly higher hardness and is primarily used to achieve enhanced abrasive wear resistance
- Higher speeds & increased feeds
- Great abrasive resistance
- Have "lead angles" etched on all tools for CNC resharpening.
Application:
Seco Tools N70023 3/8 in | 4 | 30 Degree | HSS-Co | 0.0250 in | Roughing & Finishing End Mill
