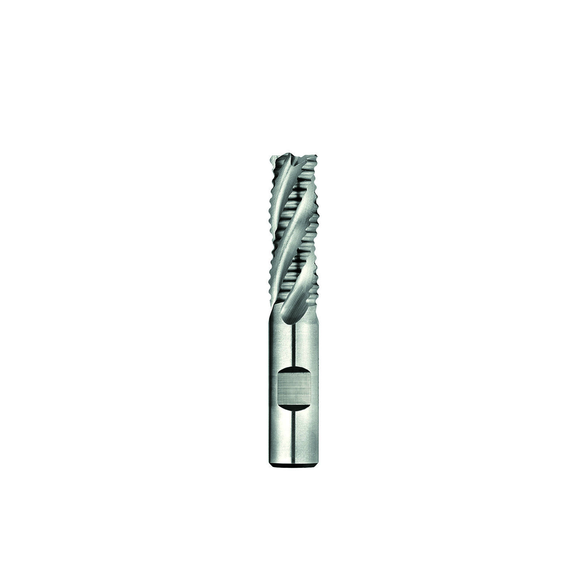

Niagara Cutter 17013623 REC700 Center Cutting Long Length Single End End Mill, 3/4 in Dia Cutter, 0.03 in Corner Radius, 1-5/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 3-7/8 in OAL, Uncoated
NIACUT 17013623
$91.26
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Pitch: Coarse
- Length of Cut: 1-5/8 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Material: HSS-Co8
- Finish/Coating: Bright / Uncoated
- Overall Length: 3-7/8 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.03 in
- Chamfer Width - Decimal: 0.03 in
- Chipbreaker: No
- Corner Radius: 0.03 in
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Cutting Direction: Right Hand
- Diameter: 3/4 in
- Length of Cut - Decimal: 1.625 in
- Length of Cut - Fractional: 1-5/8 in
- Length of Cut - Metric: 41.275 mm
- Overall Length - Decimal: 3.875 in
- Overall Length - Fractional: 3-7/8 in
- Overall Length - Metric: 98.425 mm
- Shank Type: Weldon Flat
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Diameter - Metric: 19.05 mm
- Diameter - Fractional: 3/4 in
- Number of Flutes: 4
- Flute Direction: Right Hand
- Variable Index: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Center Cutting Long Length Single End | Series: REC700 | 3/4 in Cutter Dia | 0.03 in Corner Radius | 3-7/8 in Overall Length | 1-5/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REC700-0.750-D4-C030.3-Z4 | ISO Code: REC700.750D4C030.3Z4 | M42 HSS-Co 8 | Uncoated
