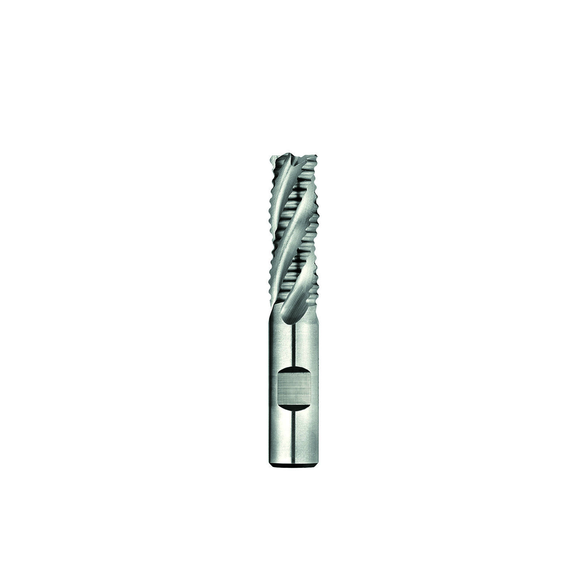

Niagara Cutter 17013733 REC700 Center Cutting Extended Reach Single End End Mill, 3/4 in Dia Cutter, 0.03 in Corner Radius, 4-1/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 6-3/8 in OAL, Uncoated
NIACUT 17013733
$124.25
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Length of Cut: 4-1/8 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Material: HSS-Co8
- Finish/Coating: Bright / Uncoated
- Overall Length: 6-3/8 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.03 in
- Chamfer Width - Decimal: 0.03 in
- Chipbreaker: No
- Corner Radius: 0.03 in
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Cutting Direction: Right Hand
- Flute Direction: Right Hand
- Length of Cut - Decimal: 4.125 in
- Length of Cut - Fractional: 4-1/8 in
- Length of Cut - Metric: 104.775 mm
- Number of Flutes: 4
- Overall Length - Decimal: 6.375 in
- Overall Length - Fractional: 6-3/8 in
- Overall Length - Metric: 161.925 mm
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Variable Index: No
EM 0.75 X 4.125 X 0.75 X 6.375 4 HSCO
