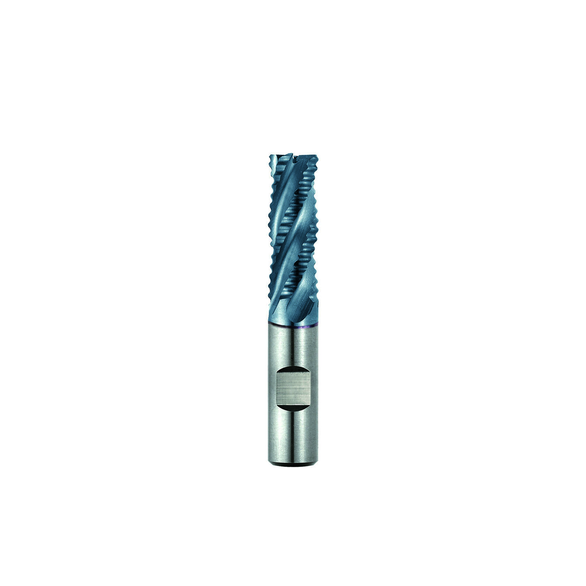

Niagara Cutter 17014066 REM710 Long Length Non-Center Cutting Single End End Mill, 1/4 in Dia Cutter, 0.02 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/16 in OAL, Uncoated
NIACUT 17014066
$53.57
/ EA
Out of Stock
- Mill Diameter: 1/4 in
- Mill Diameter - Decimal: 0.25 in
- Mill Diameter - Fractional: 1/4 in
- Mill Diameter - Metric: 6.35 mm
- Pitch: Coarse
- Length of Cut: 1-1/4 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- End Type: Square End
- Material: HSS-Co8
- Finish/Coating: Bright / Uncoated
- Overall Length: 3-1/16 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.02 in
- Chamfer Width - Decimal: 0.02 in
- Chipbreaker: No
- Corner Radius: 0.02 in
- Cutter Diameter: 1/4 in
- Cutter Diameter - Fractional: 1/4 in
- Cutting Direction: Right Hand
- Diameter: 1/4 in
- Diameter - Fractional: 1/4 in
- Diameter - Metric: 6.35 mm
- Flute Type: Spiral
- Length of Cut - Decimal: 1.25 in
- Length of Cut - Fractional: 1-1/4 in
- Length of Cut - Metric: 31.75 mm
- Overall Length - Decimal: 3.0625 in
- Overall Length - Fractional: 3-1/16 in
- Overall Length - Metric: 77.7875 mm
- Shank Type: Weldon Flat
- Single or Double End: Single End
- Number of Flutes: 4
- Flute Direction: Right Hand
- Variable Index: No
- Variable Helix: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Long Length Non-Center Cutting Single End | Series: REM710 | 1/4 in Cutter Dia | 0.02 in Corner Radius | 3-1/16 in Overall Length | 1-1/4 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REM710-0.250-F4-C020.3-Z4 | ISO Code: REM710.250F4C020.3Z4 | M42 HSS-Co 8 | Uncoated
