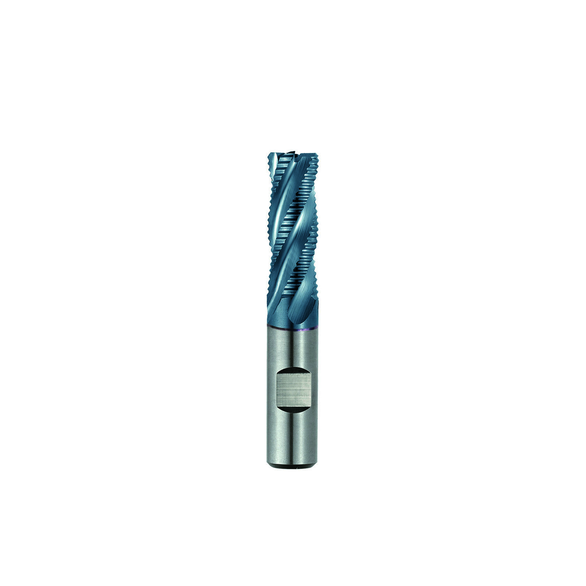

Niagara Cutter 17014878 REM445 Long Length Non-Center Cutting Single End End Mill, 1-1/4 in Dia Cutter, 0.04 in Corner Radius, 4 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 6-1/2 in OAL, TiAlN Coated
NIACUT 17014878
$268.71
/ EA
In Stock
- Mill Diameter: 1-1/4 in
- Mill Diameter - Decimal: 1.25 in
- Mill Diameter - Fractional: 1-1/4 in
- Mill Diameter - Metric: 31.75 mm
- Pitch: Fine
- Length of Cut: 4 in
- Shank Diameter: 1-1/4 in
- Shank Diameter - Decimal: 1.25 in
- Shank Diameter - Fractional: 1-1/4 in
- Shank Diameter - Metric: 31.75 mm
- End Type: Square End
- Material: HSS-Co8
- Finish/Coating: TiAlN
- Overall Length: 6-1/2 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.04 in
- Chamfer Width - Decimal: 0.04 in
- Chipbreaker: No
- Corner Radius: 0.04 in
- Cutter Diameter: 1-1/4 in
- Cutter Diameter - Fractional: 1-1/4 in
- Cutting Direction: Right Hand
- Length of Cut - Decimal: 4 in
- Length of Cut - Metric: 101.6 mm
- Number of Flutes: 6
- Overall Length - Decimal: 6.5 in
- Overall Length - Fractional: 6-1/2 in
- Overall Length - Metric: 165.1 mm
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Flute Direction: Right Hand
- Variable Index: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Long Length Non-Center Cutting Single End | Series: REM445 | 1-1/4 in Cutter Dia | 0.04 in Corner Radius | 6-1/2 in Overall Length | 4 in Maximum Depth of Cut | 6 Flutes | Spiral Flute | 1-1/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REM445-1.250-D4-C040.3-Z6 | ISO Code: REM4451.250D4C040.3Z6 | M42 HSS-Co 8 | TiAlN Coated
