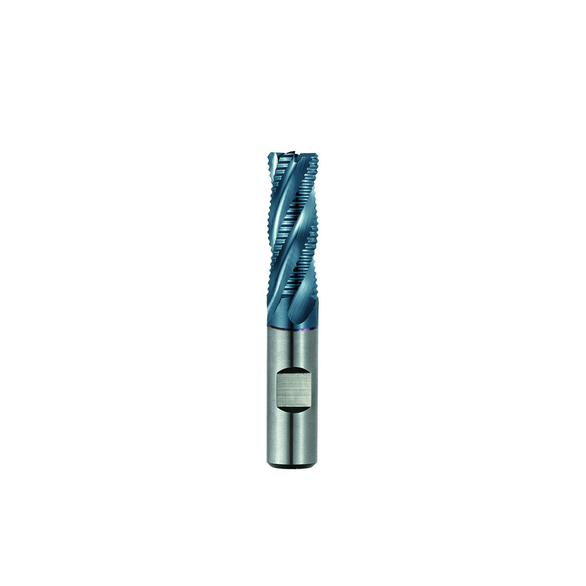

Niagara Cutter 17016199 REM445 Long Length Non-Center Cutting Single End End Mill, 5/8 in Dia Cutter, 0.03 in Corner Radius, 2-1/2 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 4-5/8 in OAL, TiCN Coated
NIACUT 17016199
$102.25
/ EA
Out of Stock
- Mill Diameter: 5/8 in
- Mill Diameter - Decimal: 0.625 in
- Mill Diameter - Fractional: 5/8 in
- Mill Diameter - Metric: 15.87 mm
- Length of Cut: 2-1/2 in
- Shank Diameter: 5/8 in
- Shank Diameter - Decimal: 0.625 in
- Shank Diameter - Fractional: 5/8 in
- Shank Diameter - Metric: 15.875 mm
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 4-5/8 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.03 in
- Chipbreaker: No
- Corner Radius: 0.03 in
- Cutter Diameter: 5/8 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Length of Cut - Decimal: 2.5 in
- Length of Cut - Fractional: 2-1/2 in
- Length of Cut - Metric: 63.5 mm
- Overall Length - Decimal: 4.625 in
- Overall Length - Fractional: 4-5/8 in
- Overall Length - Metric: 117.475 mm
- Shank Type: Weldon Flat
- Single or Double End: Single End
- Cutter Diameter - Fractional: 5/8 in
- Number of Flutes: 4
- Flute Direction: Right Hand
- Variable Index: No
- Variable Helix: No
EM 0.625 X 2.5 X 0.625 X 4.625 4 HSCO TI
