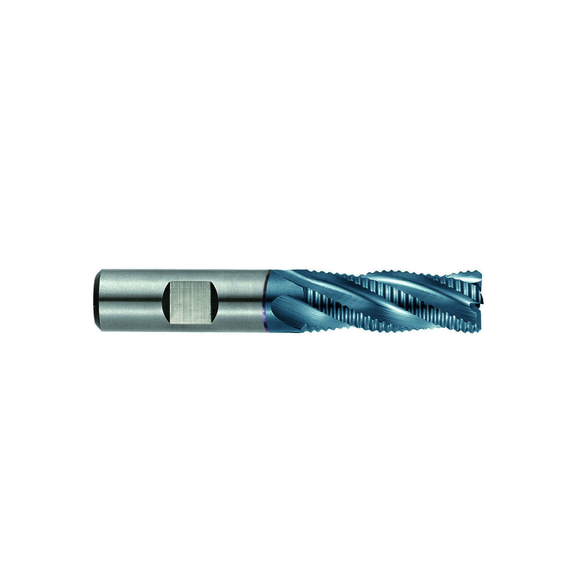

Niagara Cutter 17016217 REM445 Long Length Non-Center Cutting Single End End Mill, 1-1/4 in Dia Cutter, 0.04 in Corner Radius, 4 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 6-1/2 in OAL, TiCN Coated
NIACUT 17016217
$289.63
/ EA
Out of Stock
- Mill Diameter: 1-1/4 in
- Mill Diameter - Decimal: 1.25 in
- Mill Diameter - Fractional: 1-1/4 in
- Mill Diameter - Metric: 31.75 mm
- Length of Cut: 4 in
- Shank Diameter: 1-1/4 in
- Shank Diameter - Decimal: 1.25 in
- Shank Diameter - Fractional: 1-1/4 in
- Shank Diameter - Metric: 31.75 mm
- End Type: Square End
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 6-1/2 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Center Cutting: Center-cutting
- Chamfer Width: 0.04 in
- Chamfer Width - Decimal: 0.04 in
- Chipbreaker: No
- Corner Radius: 0.04 in
- Cutter Diameter: 1-1/4 in
- Cutter Diameter - Fractional: 1-1/4 in
- Cutting Direction: Right Hand
- Extended Reach: No
- Length of Cut - Decimal: 4 in
- Length of Cut - Metric: 101.6 mm
- Length Type: Regular
- Mill Diameter Tolerance: +0.003/-0.000 in
- Number of Flutes: 6
- Overall Length - Decimal: 6.5 in
- Overall Length - Fractional: 6-1/2 in
- Overall Length - Metric: 165.1 mm
- Part Number: N88418
- Series/List: REM445
- Shank Diameter Tolerance: -0.0001/-0.0005 in
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Flute Direction: Right Hand
- Variable Index: No
- Right hand cut and helix
- Select from the drop down box range of helix and coatings to improve performance & productivity and tool life.
Application:
Seco Tools N88418 1-1/4 in | 6 | 30 Degree | HSS-Co | Roughing & Finishing End Mill
