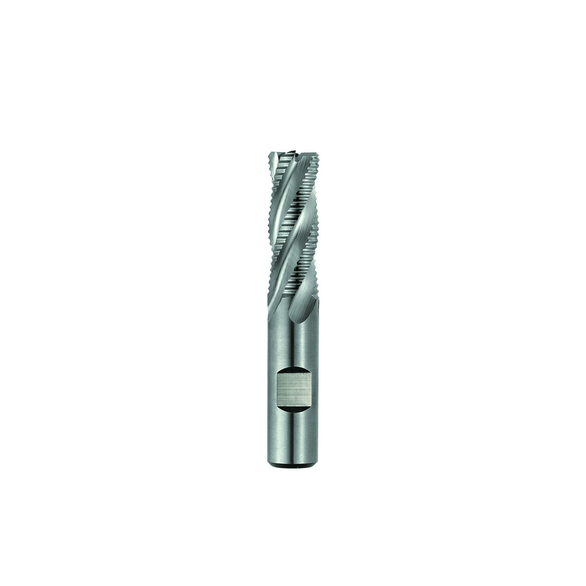

Niagara Cutter 17016278 REC448 Center Cutting Long Length Single End End Mill, 3/4 in Dia Cutter, 0.03 in Corner Radius, 3 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 5-1/4 in OAL, TiCN Coated
NIACUT 17016278
$126.75
/ EA
Out of Stock
- Mill Diameter: 5/8 in
- Mill Diameter - Decimal: 0.625 in
- Mill Diameter - Fractional: 5/8 in
- Mill Diameter - Metric: 15.87 mm
- Length of Cut: 3 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- End Type: Square
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 5-1/4 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.03 in
- Corner Radius: 0.03 in
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Length of Cut - Decimal: 3 in
- Length of Cut - Metric: 76.2 mm
- Overall Length - Decimal: 5.25 in
- Overall Length - Fractional: 5-1/4 in
- Overall Length - Metric: 133.35 mm
- Shank Type: Weldon Flat
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Number of Flutes: 4
- Flute Direction: Right Hand
- Variable Index: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Center Cutting Long Length Single End | Series: REC448 | 3/4 in Cutter Dia | 0.03 in Corner Radius | 5-1/4 in Overall Length | 3 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REC448-0.750-D4-C030.3-Z4 | ISO Code: REC448.750D4C030.3Z4 | M42 HSS-Co 8 | TiCN Coated
