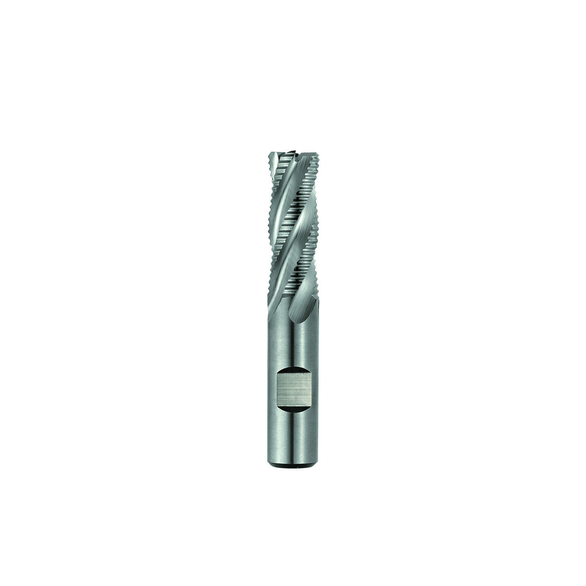

Niagara Cutter 17016282 REC448 Center Cutting Short Length Single End End Mill, 1 in Dia Cutter, 0.03 in Corner Radius, 2 in Length of Cut, 5 Flutes, 1 in Dia Shank, 4-1/2 in OAL, TiCN Coated
NIACUT 17016282
$166.47
/ EA
Out of Stock
- Mill Diameter: 1 in
- Mill Diameter - Decimal: 1 in
- Mill Diameter - Metric: 25.4 mm
- Pitch: Fine
- Length of Cut: 2 in
- Shank Diameter: 1 in
- Shank Diameter - Decimal: 1 in
- Shank Diameter - Metric: 25.4 mm
- End Type: Square End
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 4-1/2 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.03 in
- Chipbreaker: No
- Corner Radius: 0.03 in
- Cutter Diameter: 1 in
- Cutting Direction: Right Hand
- Flute Direction: Right Hand
- Length of Cut - Decimal: 2 in
- Length of Cut - Metric: 50.8 mm
- Number of Flutes: 5
- Overall Length - Decimal: 4.5 in
- Overall Length - Fractional: 4-1/2 in
- Overall Length - Metric: 114.3 mm
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Variable Index: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Center Cutting Short Length Single End | Series: REC448 | 1 in Cutter Dia | 0.03 in Corner Radius | 4-1/2 in Overall Length | 2 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 1 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REC448-1.000-D2-C030.3-Z5 | ISO Code: REC4481.000D2C030.3Z5 | M42 HSS-Co 8 | TiCN Coated
